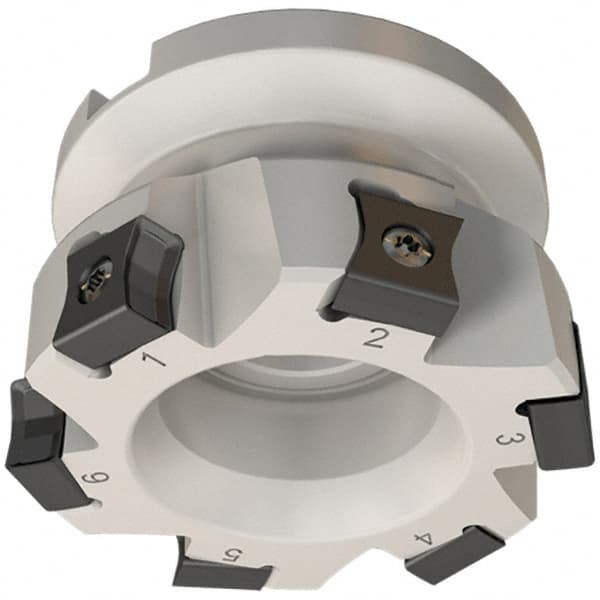

Iscar - 8 Inserts, 80mm Cut Diam, 27mm Arbor Diam, 10mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 50mm High, LN.. 1106 Insert Compatibility, Series TangMill
Item #: 05353271
Brand: Iscar
Model #: 3102496
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 80.00 |
| Cutting Diameter (Decimal Inch) | 3.1496 |
| Arbor Hole Diameter (mm) | 27.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.0630 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 50.00 |
| Overall Height (Decimal Inch) | 1.9685 |
| Insert Compatibility | LN.. 1106 |
| Series | TangMill |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| Cutter Style | F90LN-N11 |
| Number of Flutes | 8 |
| Keyway Width (mm) | 12.40 |
| Keyway Width (Decimal Inch) | 0.4882 |
| Complete Insert Compatibility | LNAR 1106 PN-N; LNAR 1106 PN-N-P; LNAR 110604PN-R-S; LNAR 110604X45PN-R-S; LNAR 110620X75PN-R-S; LNHT 1106PN-N HT; LNHT 1106PN-R HT; LNKX 1106PN-N MM; LNKX 1106PNTN MM; LNMT 1106PN-N MM |
