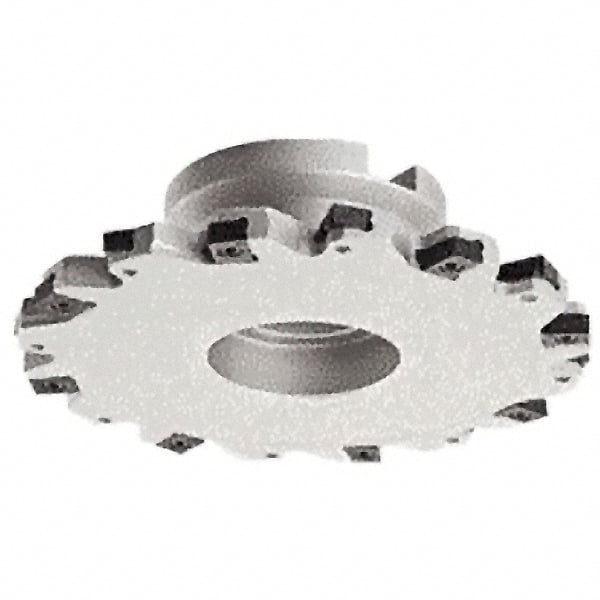

Iscar - Shell Mount A Connection, 0.8661" Depth of Cut, 80mm Cutter Diam, 0.8661" Hole Diam, 8 Tooth Indexable Slotting Cutter - FDN-LN12 Toolholder, LNET Insert
Item #: 05353768
Brand: Iscar
Model #: 3102982
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount A |
| Maximum Depth of Cut (mm) | 22.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.8661 |
| Cutter Diameter (mm) | 80.00 |
| Cutter Diameter (Decimal Inch) | 3.1496 |
| Hole Diameter (mm) | 22.00 |
| Hole Diameter (Decimal Inch) | 0.8661 |
| Number of Teeth | 8 |
| Toolholder Style | FDN-LN12 |
| Series | TangSlot(FDN-LN12) |
| Insert Style | LNET |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| Minimum Cutting Width (Decimal Inch) | 0.3937 |
| Maximum Cutting Width (Decimal Inch) | 0.4724 |
| Maximum Cutting Width (mm) | 12.00 |
| Hub Diameter (mm) | 45.00 |
| Hub Diameter (Decimal Inch) | 1.7717 |
