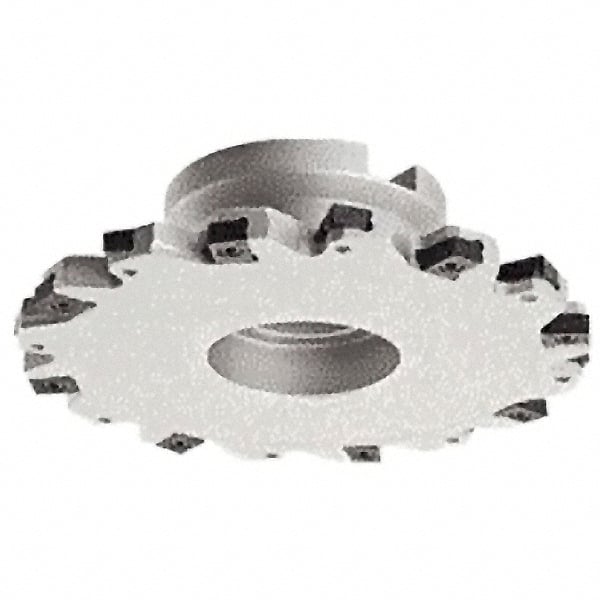

Iscar - Shell Mount B Connection, 63/64" Depth of Cut, 100mm Cutter Diam, 1-1/16" Hole Diam, 10 Tooth Indexable Slotting Cutter - FDN-LN12 Toolholder, LNET Insert
Item #: 05353800
Brand: Iscar
Model #: 3102986
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount B |
| Maximum Depth of Cut (mm) | 25.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.9843 |
| Cutter Diameter (mm) | 100.00 |
| Cutter Diameter (Decimal Inch) | 3.9370 |
| Hole Diameter (mm) | 27.00 |
| Hole Diameter (Decimal Inch) | 1.0630 |
| Number of Teeth | 10 |
| Toolholder Style | FDN-LN12 |
| Series | TangSlot(FDN-LN12) |
| Insert Style | LNET |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 10 |
| Insert Holding Method | Screw |
| Minimum Cutting Width (Decimal Inch) | 0.3937 |
| Maximum Cutting Width (Decimal Inch) | 0.4724 |
| Maximum Cutting Width (mm) | 12.00 |
| Hub Diameter (mm) | 55.00 |
| Hub Diameter (Decimal Inch) | 2.1654 |
