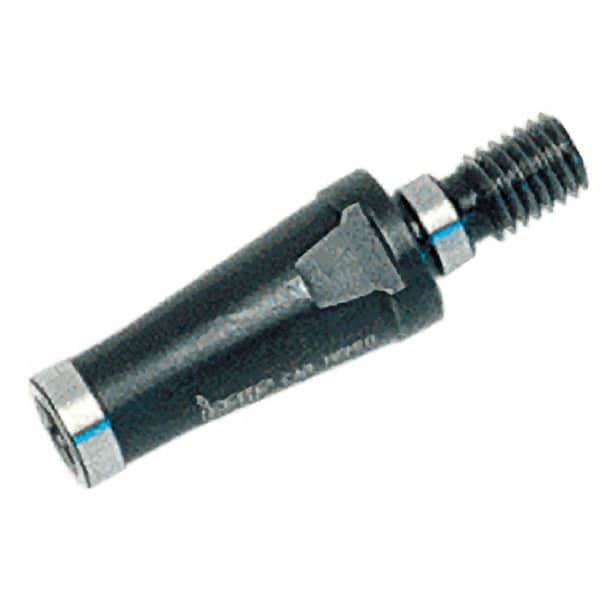

Iscar - Modular End Mill Reductions & Extensions Type: End Mill Reduction Shank Type: Screw-On Connection
Item #: 05354097
Brand: Iscar
Model #: 3110642
Exact Tooling IR#: 04
Product Specifications
Modular End Mill Reductions & Extensions; Type: End Mill Reduction ; Shank Type: Screw-On Connection ; Shank Connection Size: M12 ; Projection (Decimal Inch): 1.7720 ; Projection (mm): 45.01 ; Nose Diameter (mm): 18.01
| Type | End Mill Reduction |
| Shank Type | Screw-On Connection |
| Shank Connection Size | M12 |
| Projection (Decimal Inch) | 1.7720 |
| Projection (mm) | 45.01 |
| Nose Diameter (mm) | 18.01 |
| Nose Diameter (Decimal Inch) | 0.7090 |
| Nose Hole Thread Size | M10 |
| Overall Length (mm) | 67.01 |
| Overall Length (Decimal Inch) | 2.6380 |
