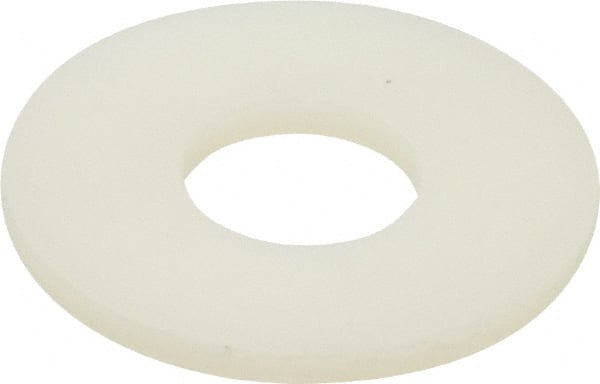

Made in USA - 5/16" Screw, Grade 6/6 Nylon Standard Flat Washer - 0.344" ID x 7/8" OD, 0.062" Thick, Plain Finish
Item #: 05401922
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Flat washers are standard washers used for general-purpose fastening. They are placed under the head of a bolt or above a nut to distribute clamping force and prevent fasteners from pulling through materials.
Nylon is a lightweight, nonconductive material that is resistant to impact, wear and abrasion. It is ideal for electrical applications or where corrosion is a concern.
| Product Specifications | |
|---|---|
| Type | Standard |
| System of Measurement | Inch |
| Screw Size | 5/16 |
| Inside Diameter (Decimal Inch) | 0.3440 |
| Outside Diameter (Decimal Inch) | 0.8750 |
| Thickness (Decimal Inch) | 0.0620 |
| Material Grade | 6/6 |
| Material | Nylon |
| Finish/Coating | Plain |
| Fastener Standard | L-P-410A Type 6/6 |
| Maximum Inside Diameter (Decimal Inch) | 0.3490 |
| Minimum Outside Diameter (Decimal Inch) | 0.8650 |
| Minimum Thickness (Decimal Inch) | 0.0580 |
| Color | Natural |
| Inside Diameter Tolerance (Decimal Inch) | -0.005 to 0.015 |
| Outside Diameter Tolerance (Decimal Inch) | -0.007 to 0.015 |
