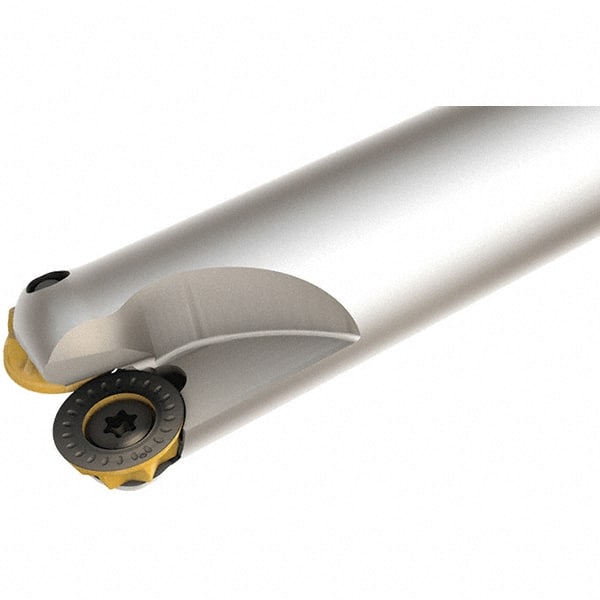

Iscar - 1-1/4" Cutting Diam, 1" Shank Diam, 1-1/4" Max Depth of Cut, Straight Shank Indexable Copy End Mill - 3 Inserts, RXCR Insert, ER Toolholder
Item #: 05412952
Brand: Iscar
Model #: 3101636
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 12.00 |
| Cutting Diameter (Decimal Inch) | 0.4724 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Number of Cutter Inserts | 3 |
| Insert Style | RXCR |
| Toolholder Style | ER |
| Series | RoundMill |
| Overall Length (mm) | 100.00 |
| Insert Diameter (mm) | 7.00 |
| Insert Diameter (Decimal Inch) | 0.2756 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Head Length (mm) | 40.00 |
| Head Length (Decimal Inch) | 1.5748 |
