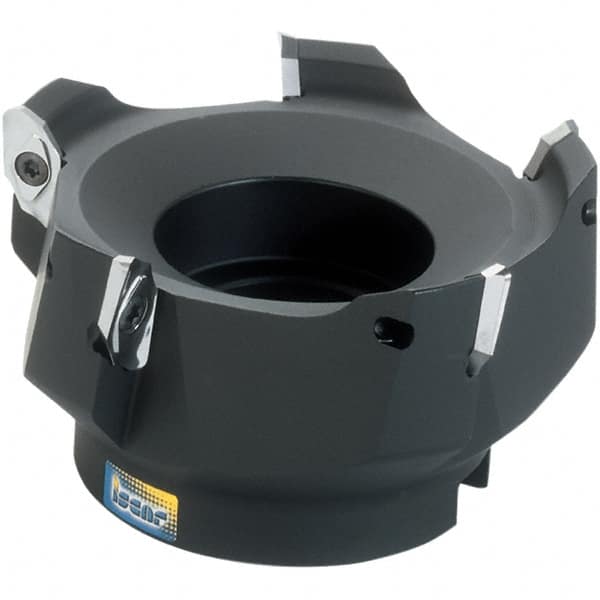

Iscar - 5 Inserts, 5" Cut Diam, 1-1/2" Arbor Diam, 0.622" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 2-1/4" High, HM90 APCR 1605 Insert Compatibility, Through Coolant, Series Helialu
Item #: 05421508
Brand: Iscar
Model #: 3102773
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 5.0000 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 0/90 |
| Overall Height (Decimal Inch) | 2.2500 |
| Insert Compatibility | HM90 APCR 1605 |
| Series | Helialu |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.6220 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Cutter Style | HM90 FAL-16 |
| Number of Flutes | 5 |
| Maximum RPM | 11611 |
| Complete Insert Compatibility | HM90 APCR 160502R-P; HM90 APCR 160504R-P; HM90 APCR 160505R-P; HM90 APCR 160508R-P; HM90 APCR 160516R-P |
