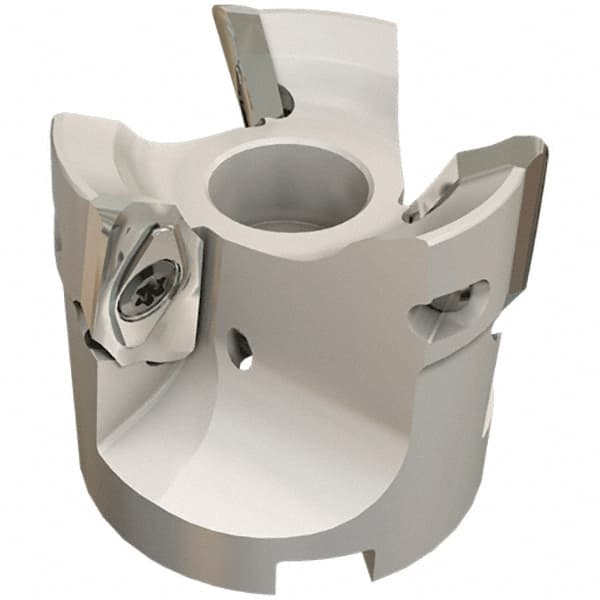

Iscar - 5 Inserts, 125mm Cut Diam, 40mm Arbor Diam, 15.8mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 63mm High, HM90 APCR 1605 Insert Compatibility, Through Coolant, Series Helialu
Item #: 05421557
Brand: Iscar
Model #: 3102778
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 125.00 |
| Cutting Diameter (Decimal Inch) | 4.9213 |
| Arbor Hole Diameter (mm) | 40.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 63.00 |
| Overall Height (Decimal Inch) | 2.4803 |
| Insert Compatibility | HM90 APCR 1605 |
| Series | Helialu |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 15.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.6220 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Cutter Style | HM90 FAL-16 |
| Number of Flutes | 5 |
| Keyway Width (mm) | 16.40 |
| Keyway Width (Decimal Inch) | 0.6457 |
| Maximum RPM | 11600 |
| Complete Insert Compatibility | HM90 APCR 160502R-P; HM90 APCR 160504R-P; HM90 APCR 160505R-P; HM90 APCR 160508R-P; HM90 APCR 160516R-P |
