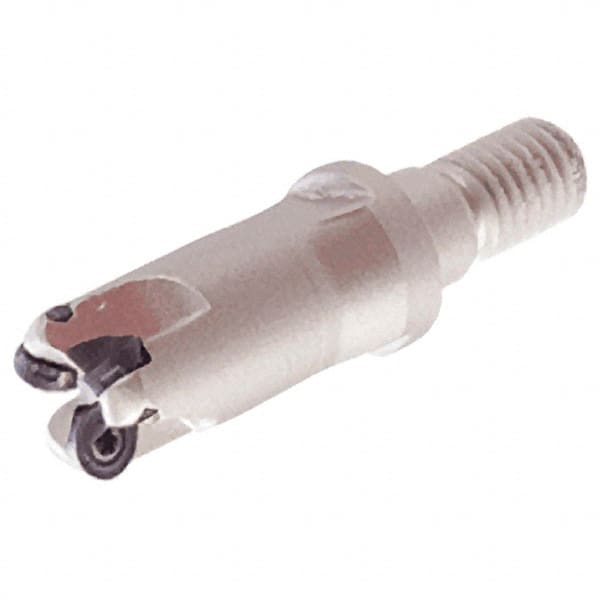

Iscar - 15mm Cutting Diam, 7mm Max Depth of Cut, Modular Connection Indexable Copy End Mill - 3 Inserts, RXCR, RXCW Insert, ER-M Toolholder
Item #: 05421979
Brand: Iscar
Model #: 3101789
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 15.00 |
| Cutting Diameter (Decimal Inch) | 0.5906 |
| Maximum Depth of Cut (mm) | 7.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2756 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | M8 |
| Number of Cutter Inserts | 3 |
| Insert Style | RXCR; RXCW |
| Toolholder Style | ER-M |
| Series | FlexFit; RoundMill |
| Overall Length (mm) | 23.00 |
| Insert Diameter (mm) | 8.00 |
| Insert Diameter (Decimal Inch) | 0.3150 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Modular Connection Size | M8 |
