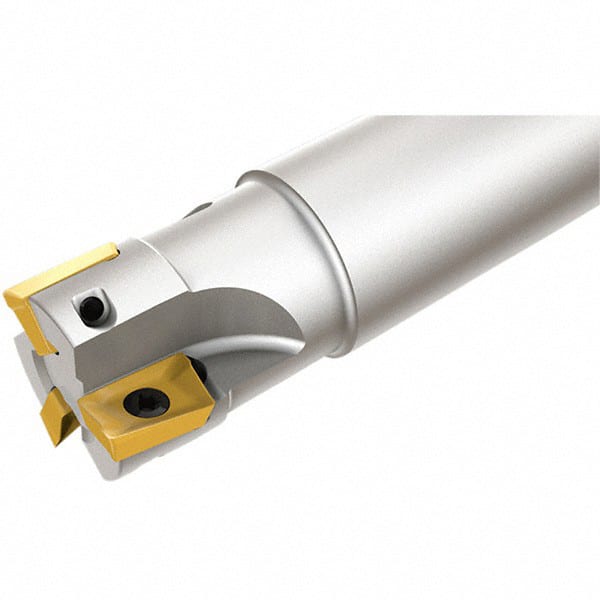

Iscar - 25mm Cut Diam, 14.3mm Max Depth of Cut, 25mm Shank Diam, 110mm OAL, Indexable Square Shoulder End Mill - Weldon Shank, 90° Lead Angle, Through Coolant, Series Heli2000
Item #: 05431788
Brand: Iscar
Model #: 3101699
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.9843 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Overall Length/Projection (mm) | 110.00 |
| Overall Length/Projection (Decimal Inch) | 4.3307 |
| Lead Angle | 90 |
| Series | Heli2000 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 14.30 |
| Maximum Depth of Cut (Decimal Inch) | 0.5630 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Head Length (mm) | 35.00 |
| Head Length (Decimal Inch) | 1.3780 |
| Weldon Flat | Yes |
