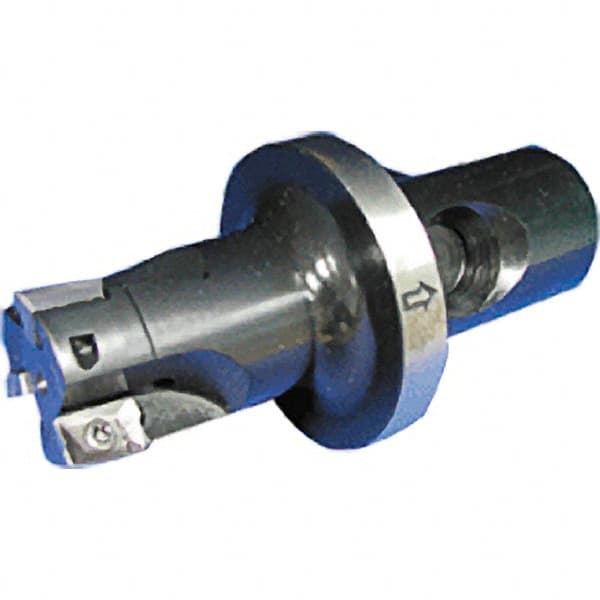

Iscar - 1-1/4" Cut Diam, 0.35" Max Depth of Cut, 3.74" OAL, Indexable Square Shoulder End Mill - CF4 Modular Connection, 90° Lead Angle, Through Coolant, Series ClickFit, Heli2000
Item #: 05431812
Brand: Iscar
Model #: 3101732
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Cutting Diameter (Inch) | 1-1/4 |
| Shank Type | Modular Connection |
| Modular Connection Size | CF4 |
| Overall Length/Projection (Decimal Inch) | 3.7400 |
| Lead Angle | 90 |
| Series | ClickFit, Heli2000 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.3500 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Number of Flutes | 4 |
| Head Length (Decimal Inch) | 1.7700 |
| Weldon Flat | No |
| Shank Length (Decimal Inch) | 1.9700 |
