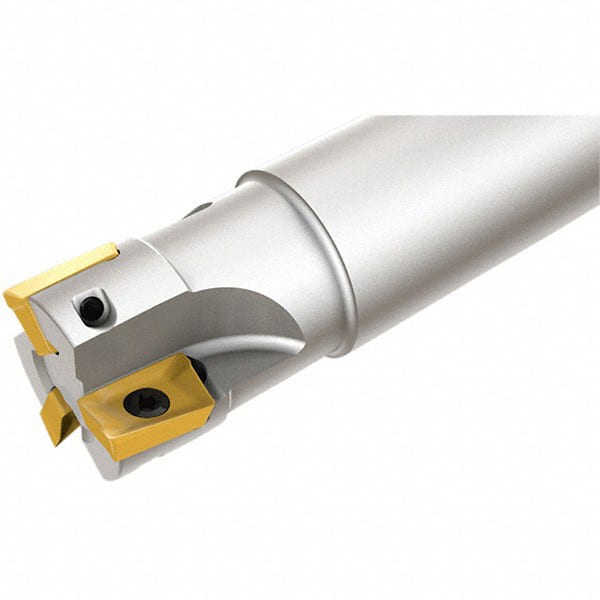

Iscar - 25mm Cut Diam, 10mm Max Depth of Cut, 25mm Shank Diam, 140mm OAL, Indexable Square Shoulder End Mill - Weldon Shank, 90° Lead Angle, Series Heli2000
Item #: 05432224
Brand: Iscar
Model #: 3102132
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.9843 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Overall Length/Projection (mm) | 140.00 |
| Overall Length/Projection (Decimal Inch) | 5.5118 |
| Lead Angle | 90 |
| Series | Heli2000 |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Head Length (mm) | 80.00 |
| Head Length (Decimal Inch) | 3.1496 |
| Weldon Flat | Yes |
| Maximum RPM | 47150 |
