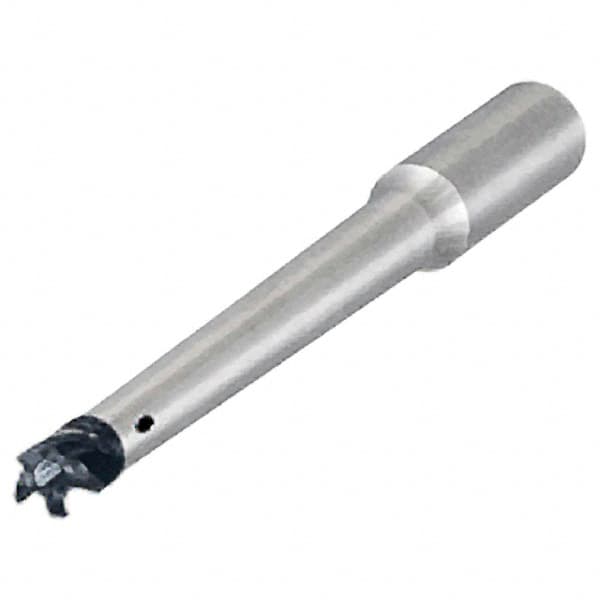

Iscar - Multimaster 16mm 89° Shank Milling Tip Insert Holder & Shank - 0.378" Neck Diam, T06 Neck Thread, 160mm OAL, Steel MM S-D Tool Holder
Item #: 05432794
Brand: Iscar
Model #: 3102475
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Shank Type | 89 Degree Shank |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Neck Diameter (Decimal Inch) | 0.3780 |
| Neck Thread Size | T06 |
| Toolholder Material | Steel |
| Overall Length (mm) | 160.00 |
| Overall Length (Decimal Inch) | 6.2992 |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Head Length (Decimal Inch) | 1.8425 |
| Effective Length (mm) | 55.00 |
| Effective Length (Decimal Inch) | 2.1654 |
| Milling Tip Style | HP E90AN-MM-07, T290 ELN-MM-05 |
| Shank Shape | Conical |
| Toolholder Style | MM S-D |
