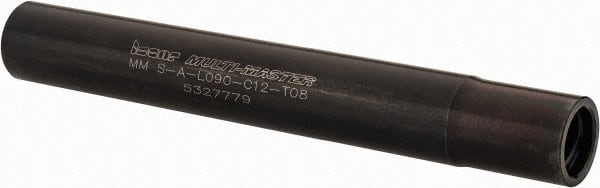

Iscar - Multimaster 12mm Stepped Shank Milling Tip Insert Holder & Shank - 0.4528" Neck Diam, T08 Neck Thread, 90mm OAL, Steel MM S-A Tool Holder
Item #: 05432802
Brand: Iscar
Model #: 3102510
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Shank Type | Stepped Shank |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Neck Diameter (Decimal Inch) | 0.4528 |
| Neck Thread Size | T08 |
| Toolholder Material | Steel |
| Overall Length (mm) | 90.00 |
| Overall Length (Decimal Inch) | 3.5433 |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Head Length (Decimal Inch) | 0.5236 |
| Effective Length (mm) | 16.00 |
| Effective Length (Decimal Inch) | 0.6299 |
| Milling Tip Style | BCM-MM, HCE-MM, HCM-MM, HP E90AN-MM-07 |
| Shank Shape | Straight |
| Toolholder Style | MM S-A |
