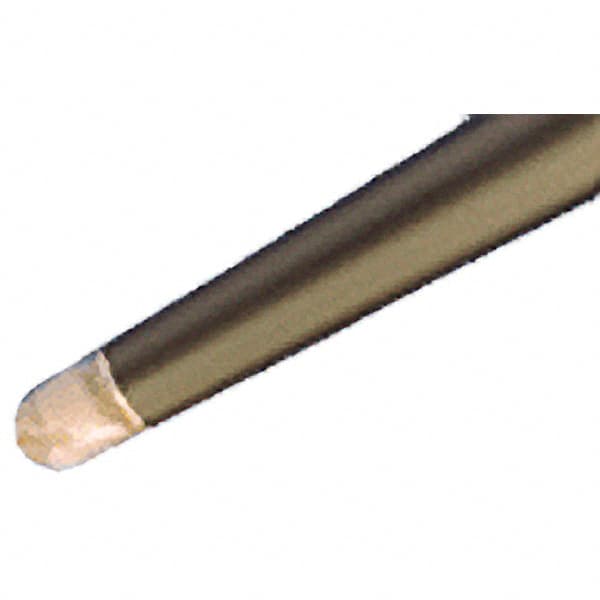

Iscar - Multimaster 20mm 85° Shank Milling Tip Insert Holder & Shank - 0.378" Neck Diam, T06 Neck Thread, 140mm OAL, Tungsten MM S-B Tool Holder
Item #: 05432935
Brand: Iscar
Model #: 3102928
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Shank Type | 85 Degree Shank |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Neck Diameter (Decimal Inch) | 0.3780 |
| Neck Thread Size | T06 |
| Toolholder Material | Tungsten |
| Overall Length (mm) | 140.00 |
| Overall Length (Decimal Inch) | 5.5118 |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Effective Length (mm) | 60.00 |
| Effective Length (Decimal Inch) | 2.3622 |
| Milling Tip Style | HP E90AN-MM-07, T290 ELN-MM-05 |
| Shank Shape | Conical |
| Toolholder Style | MM S-B |
