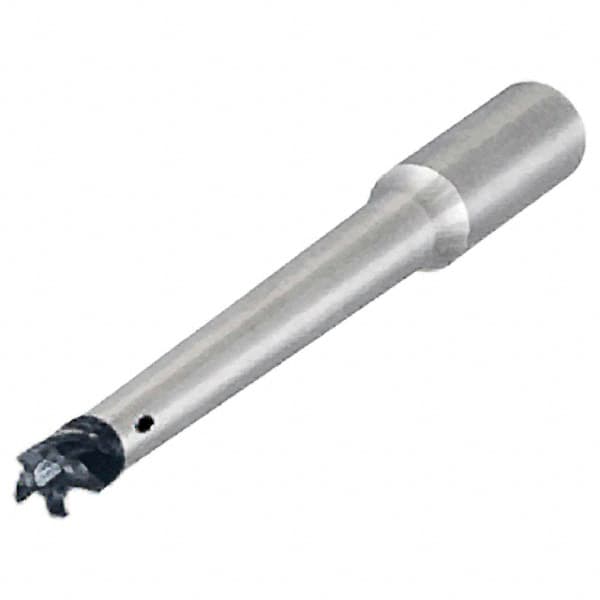

Iscar - Multimaster 16mm 89° Shank Milling Tip Insert Holder & Shank - 0.4528" Neck Diam, T08 Neck Thread, 150mm OAL, Carbide MM S-D Tool Holder
Item #: 05433040
Brand: Iscar
Model #: 3102997
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Shank Type | 89 Degree Shank |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Neck Diameter (Decimal Inch) | 0.4528 |
| Neck Thread Size | T08 |
| Toolholder Material | Carbide |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Head Length (Decimal Inch) | 3.8504 |
| Effective Length (mm) | 100.00 |
| Effective Length (Decimal Inch) | 3.9370 |
| Milling Tip Style | BCM-MM, HCE-MM, HCM-MM, HP E90AN-MM-07, T290 ELN-MM-05 |
| Shank Shape | Conical |
| Toolholder Style | MM S-D |
