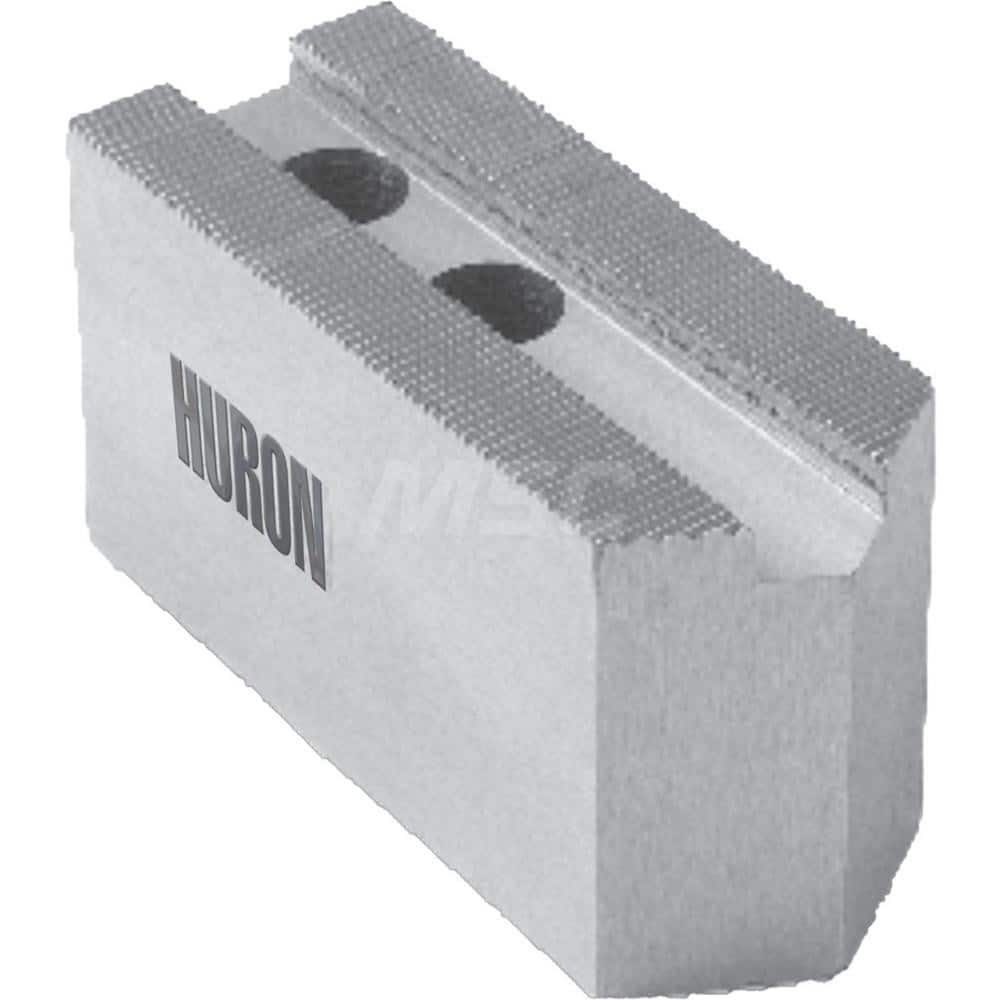

Soft Lathe Chuck Jaw: Serrated 1-1/2″ OAW, 2″ OAH, 4″ OAL, 1″ Between Mount Holes, Steel
Item #: 05444856
Brand: Huron Machine Products
Model #: KT8PL
Product Specifications
| Jaw Interface Type | Serrated |
| Material | Steel |
| Maximum Compatible Chuck Diameter (mm) | 8.00 |
| Maximum Compatible Chuck Diameter (Decimal Inch) | 8.0000 |
| Minimum Compatible Chuck Diameter (Decimal Inch) | 8.0000 |
| Distance Between Mount Hole Centers (Decimal Inch) | 1.0000 |
| Groove Width (Decimal Inch) | 0.5500 |
| Overall Height (Decimal Inch) | 2.0000 |
| Overall Length (Inch) | 4 |
| Overall Width/Diameter (Decimal Inch) | 1-1/2 |
| Number Of Jaws | 1 |
