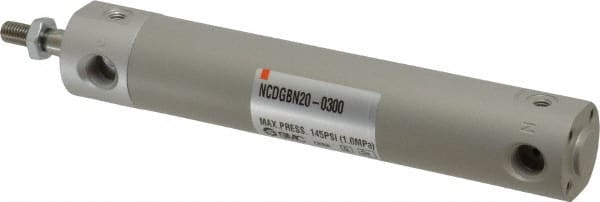

SMC PNEUMATICS - 3/4" Bore Double Acting Air Cylinder - 1/8 Port, 1/4-28 Rod Thread, 140 Max psi, 40 to 140°F
Item #: 05447388
Brand: SMC PNEUMATICS
Model #: NCDGBN20-0300
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Double Acting |
| Bore Size (Inch) | 3/4 |
| Bore Size (mm) | 20.00 |
| Rod Diameter (Decimal Inch) | 0.315 |
| Stroke Length (Decimal Inch) | 3.0000 |
| Mounting Style | Basic |
| Port Size | 1/8 |
| Port Type | NPT |
| Width (Decimal Inch) | 1.0200 |
| Length (Decimal Inch) | 6.780 |
| Distance Between Centers Width (Decimal Inch) | 0.550 |
| Mount Thread | 8-32 |
| Material | Aluminum Alloy |
| Seal Material | Buna-N |
| Maximum Working Pressure (psi) | 140 |
| Rod Thread Size | 1/4-28 |
