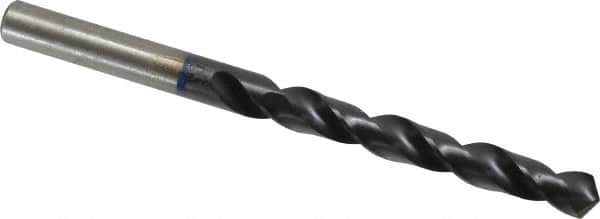

Accupro - 23/64" 120° Cobalt Jobber Drill - TiAlN Finish, Right Hand Cut, Spiral Flute, Straight Shank, 125mm OAL, Faceted Point
Item #: 05492897
Brand: Accupro
Exact Tooling IR#: 04
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (Inch) | 23/64 |
| Drill Bit Size (Decimal Inch) | 0.3594 |
| Drill Point Angle | 120 |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | TiAlN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (mm) | 81.00 |
| Overall Length (mm) | 125.00 |
| Point Type | Faceted |
| Shank Diameter (Decimal Inch) | 0.3594 |
| Spiral Type | Fast Spiral |
| Specification Designation | DIN |
| Web Configuration | Tapered |
| Web Thinning | Web-Thinned |
| Specification Number | DIN 338 |
| Drill Bit Grade | High Performance |
