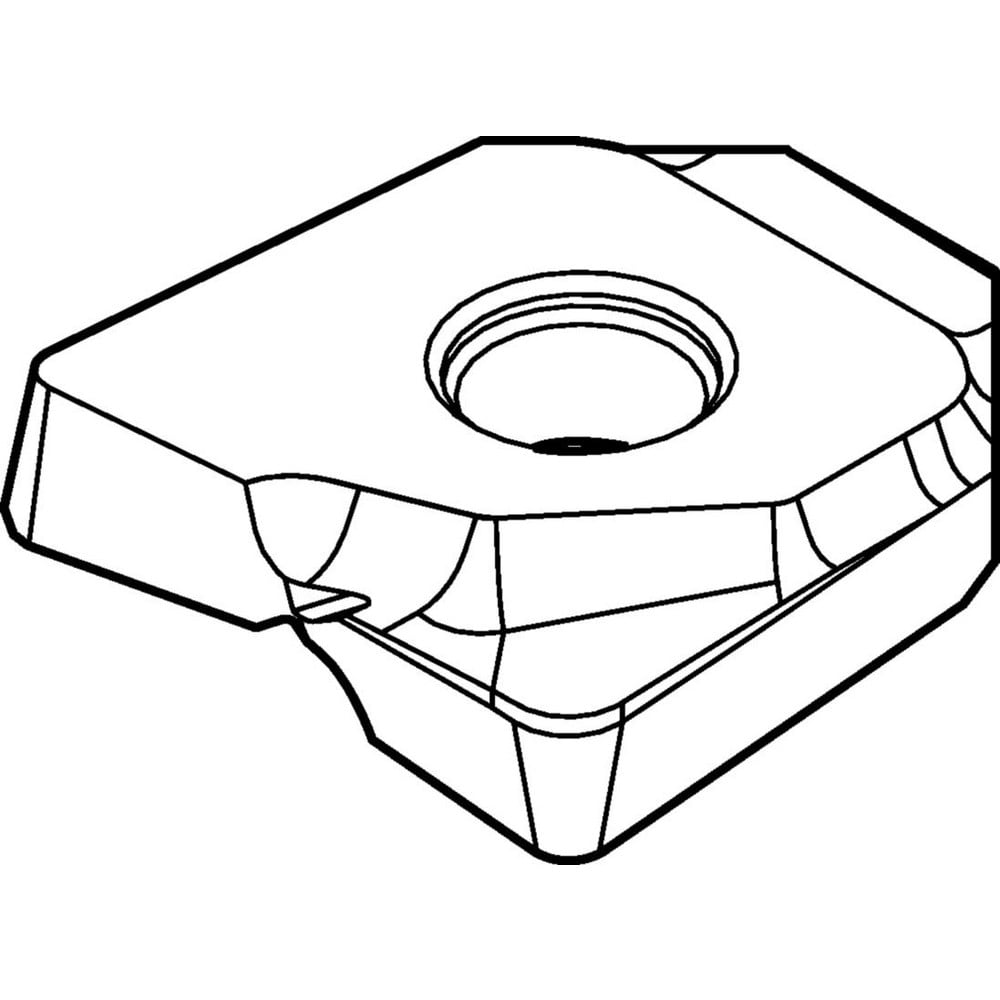

Brand: Widia / Part #: 6724703
Item #: 95159026
Brand: Widia
Model #: 6724703
Product Specifications
| Insert Style | M270 |
| Insert Size Code | TF16 |
| Insert Size | 16 |
| Insert Material | Carbide |
| Manufacturer Grade | WU10PM |
| Thickness (Inch) | 3/16 |
| Inscribed Circle (Decimal Inch) | 0.6299 |
| Inscribed Circle (mm) | 16.00 |
| Corner Radius (Decimal Inch) | 0.0199 |
| Insert Hand | Right Hand |
| Series | M270 |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.6575 |
| Number Of Cutting Edges | 2 |
| Insert Shape | Irregular |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Ansi Code | M270TF16R05 |
| Iso Code | M270TF16R05 |
| Manufacturers Catalog Number | M270TF16R05 |
| Cutter Series Compatibility | M270 BACK DRAFT IN |
| Chip Breaker | None |
| Cutting Direction | Right Hand |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Irregular |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiAlN |
| Included Angle Degree | 75 |
| Width (Decimal Inch - 4 Decimals) | 0.6299 |
| Width (Mm - 2 Decimals) | 16.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1874 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6575 |
