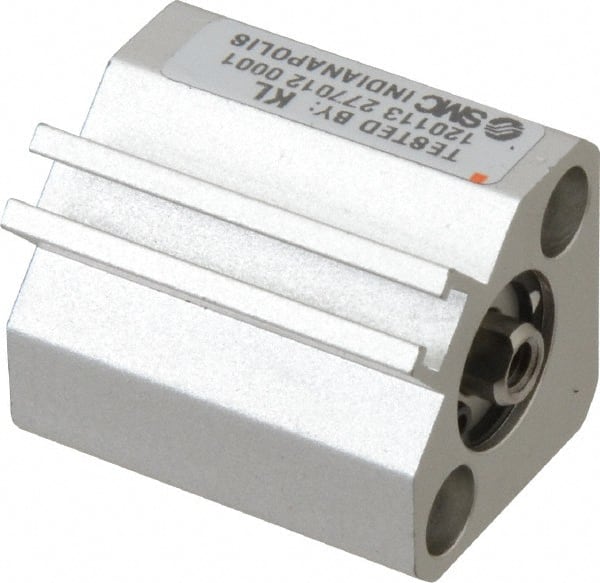

SMC PNEUMATICS - 3/16" Stroke x 1/2" Bore Double Acting Air Cylinder - 10-32 Port, 8-32 Rod Thread, 145 Max psi, 15 to 160°F
Item #: 05547187
Brand: SMC PNEUMATICS
Model #: NCDQ2B12-5DZ
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Double Acting |
| Bore Size (Inch) | 1/2 |
| Bore Size (mm) | 12.00 |
| Rod Diameter (Decimal Inch) | 0.236 |
| Rod Diameter (mm) | 6.00 |
| Stroke Length (Inch) | 3/16 |
| Stroke Length (mm) | 5.00 |
| Mounting Style | Double Clevis |
| Port Size | 10-32 |
| Port Type | UNF |
| Width (Decimal Inch) | 0.9840 |
| Width (mm) | 25.00 |
| Length (Decimal Inch) | 1.000 |
| Length (mm) | 20.50 |
| Distance Between Centers Width (mm) | 15.5000 |
| Material | Aluminum Alloy |
| Seal Material | Buna-N |
| Maximum Working Pressure (psi) | 145 |
| Rod Thread Size | 8-32 |
