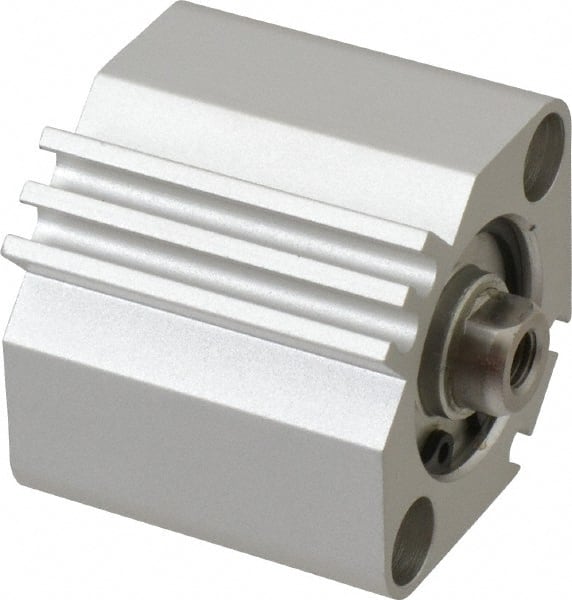

SMC PNEUMATICS - 3/8" Stroke x 1" Bore Double Acting Air Cylinder - 10-32 Port, 1/4-28 Rod Thread, 145 Max psi, 15 to 160°F
Item #: 05547344
Brand: SMC PNEUMATICS
Model #: NCDQ2B25-10DZ
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Double Acting |
| Bore Size (Inch) | 1 |
| Bore Size (mm) | 25.00 |
| Rod Diameter (Decimal Inch) | 0.472 |
| Rod Diameter (mm) | 12.00 |
| Stroke Length (Inch) | 3/8 |
| Stroke Length (mm) | 10.00 |
| Mounting Style | Double Clevis |
| Port Size | 10-32 |
| Port Type | UNF |
| Width (Decimal Inch) | 1.5750 |
| Width (mm) | 40.00 |
| Length (Decimal Inch) | 1.476 |
| Length (mm) | 27.50 |
| Distance Between Centers Width (mm) | 28.0000 |
| Material | Aluminum Alloy |
| Seal Material | Buna-N |
| Maximum Working Pressure (psi) | 145 |
| Rod Thread Size | 1/4-28 |
