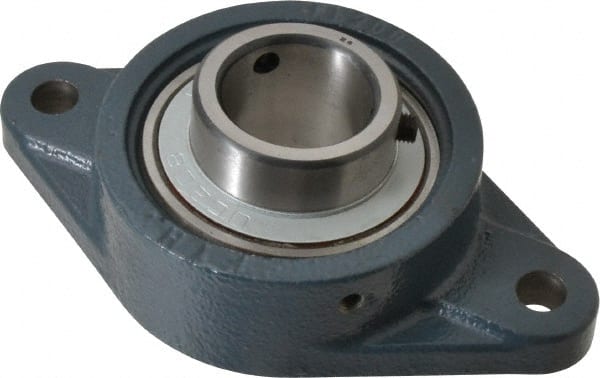

Value Collection - 1-1/2" ID, 3-15/16" OAW x 6-7/8" OAL x 3-15/16" OAH 2-Bolt High Temperature Flange Bearing - 4,000 Lb Static Cap, 6,400 Lb Dyn Cap, 5.656" Btw Mnt Hole Ctrs, 53/64" Base-to-Ctr Ht, Cast Iron
Item #: 05550850
Brand: Value Collection
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | 2 Bolt Flange Bearings High Temperature |
| Inside Diameter (Inch) | 1-1/2 |
| Width (Decimal Inch) | 1.9370 |
| Width (mm) | 49.20 |
| Overall Length (Inch) | 6-7/8 |
| Overall Length (mm) | 174.6250 |
| Overall Length (Decimal Inch) | 6.8750 |
| Overall Height (Inch) | 3-15/16 |
| Overall Height (Decimal Inch) | 3.9375 |
| Overall Height (mm) | 100.01250 |
| Static Load Capacity (Pounds) | 4000.00 |
| Dynamic Load Capacity (Pounds) | 6400 |
| Distance Between Mounting Hole Centers (Decimal Inch) | 5.6560 |
| Material | Cast Iron |
| Distance Between Base And Center (Decimal Inch) | 0.8281 |
| Distance Between Base And Center (Inch) | 53/64 |
| Bolt Size (Inch) | 7/16 |
| Bolt Size (Decimal Inch) | 0.4375 |
