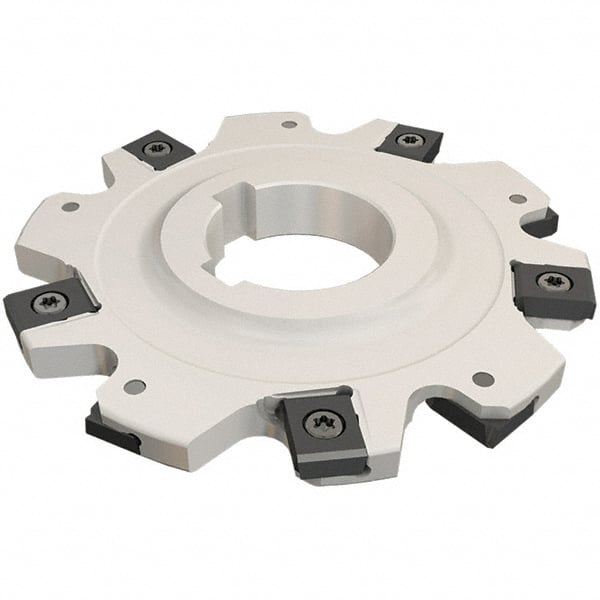

Iscar - Arbor Hole Connection, 2.4606" Depth of Cut, 200mm Cutter Diam, 1.9685" Hole Diam, 10 Tooth Indexable Slotting Cutter - SDN-LN12 Toolholder, LNET Insert
Item #: 05596721
Brand: Iscar
Model #: 3102267
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Maximum Depth of Cut (mm) | 62.50 |
| Maximum Depth of Cut (Decimal Inch) | 2.4606 |
| Cutter Diameter (mm) | 200.00 |
| Cutter Diameter (Decimal Inch) | 7.8740 |
| Hole Diameter (mm) | 50.00 |
| Hole Diameter (Decimal Inch) | 1.9685 |
| Number of Teeth | 10 |
| Toolholder Style | SDN-LN12 |
| Series | TangSlot(SDN-LN12) |
| Insert Style | LNET |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 20 |
| Insert Holding Method | Screw |
| Minimum Cutting Width (Decimal Inch) | 0.3150 |
| Maximum Cutting Width (Decimal Inch) | 0.3937 |
| Maximum Cutting Width (mm) | 10.00 |
| Hub Diameter (mm) | 70.00 |
| Hub Diameter (Decimal Inch) | 2.7559 |
