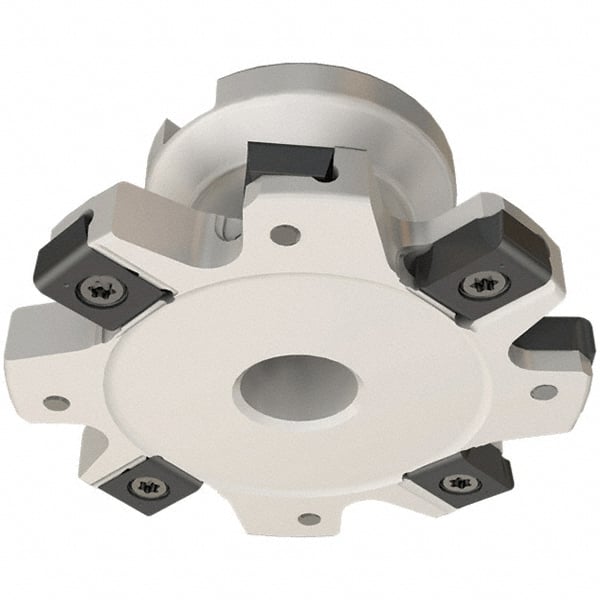

Iscar - Shell Mount A Connection, 3/8" Cutting Width, 0.88" Depth of Cut, 3" Cutter Diam, 3/4" Hole Diam, 8 Tooth Indexable Slotting Cutter - FDN-LN12 Toolholder, LNET Insert
Item #: 05596960
Brand: Iscar
Model #: 3103143
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount A |
| Cutting Width (Decimal Inch) | 0.3750 |
| Maximum Depth of Cut (Decimal Inch) | 0.8800 |
| Cutter Diameter (Decimal Inch) | 3.0000 |
| Hole Diameter (Decimal Inch) | 0.7500 |
| Number of Teeth | 8 |
| Toolholder Style | FDN-LN12 |
| Series | TangSlot(FDN-LN12) |
| Insert Style | LNET |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| Minimum Cutting Width (Decimal Inch) | 0.3750 |
| Maximum Cutting Width (Decimal Inch) | 0.3940 |
| Hub Diameter (Decimal Inch) | 1.7700 |
| Radius | No |
| Manufacturers Catalog Number | FDN D3.0-0.375-06-LN12 |
| Complete Insert Compatibility1 | LNET 12 |
