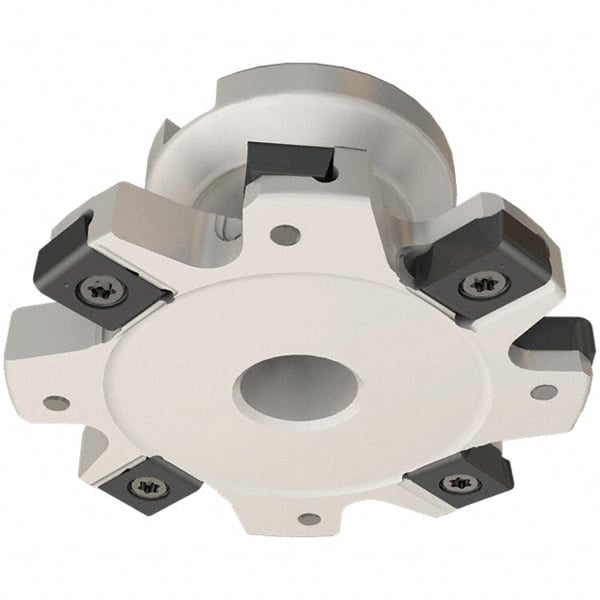

Iscar - Shell Mount B Connection, 1.41" Depth of Cut, 5" Cutter Diam, 1-1/4" Hole Diam, 6 Tooth Indexable Slotting Cutter - FDN-LN12 Toolholder, LNET Insert
Item #: 05596994
Brand: Iscar
Model #: 3103146
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount B |
| Maximum Depth of Cut (Decimal Inch) | 1.4100 |
| Cutter Diameter (Decimal Inch) | 5.0000 |
| Hole Diameter (Decimal Inch) | 1.2500 |
| Number of Teeth | 6 |
| Toolholder Style | FDN-LN12 |
| Series | TangSlot(FDN-LN12) |
| Insert Style | LNET |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Screw |
| Minimum Cutting Width (Decimal Inch) | 0.2810 |
| Maximum Cutting Width (Decimal Inch) | 0.3400 |
| Hub Diameter (Decimal Inch) | 2.5600 |
