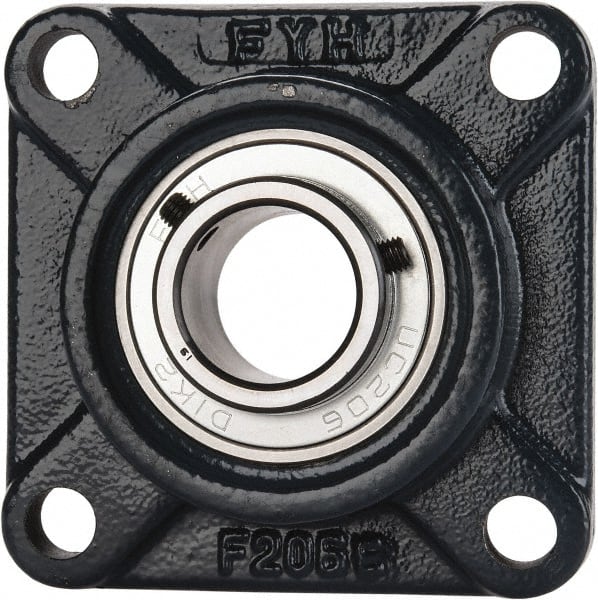

Value Collection - 1-3/16" ID, 4-1/4" OAW x 4-1/4" OAL x 4-1/4" OAH 4-Bolt High Temperature Flange Bearing - 2,500 Lb Static Cap, 4,300 Lb Dyn Cap, 3-1/4" Btw Mnt Hole Ctrs, 45/64" Base-to-Ctr Ht, Cast Iron
Item #: 05600200
Brand: Value Collection
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | 4 Bolt Flange Bearings High Temperature |
| Inside Diameter (Inch) | 1-3/16 |
| Width (Decimal Inch) | 1.5000 |
| Width (mm) | 38.10 |
| Overall Length (Inch) | 4-1/4 |
| Overall Length (mm) | 107.9500 |
| Overall Length (Decimal Inch) | 4.2500 |
| Overall Height (Inch) | 4-1/4 |
| Overall Height (Decimal Inch) | 4.2500 |
| Overall Height (mm) | 107.95000 |
| Static Load Capacity (Pounds) | 2500.00 |
| Dynamic Load Capacity (Pounds) | 4300 |
| Distance Between Mounting Hole Centers (Decimal Inch) | 3.2500 |
| Material | Cast Iron |
| Distance Between Base And Center (Decimal Inch) | 0.7031 |
| Distance Between Base And Center (Inch) | 45/64 |
| Bolt Size (Inch) | 7/16 |
| Bolt Size (Decimal Inch) | 0.4375 |
