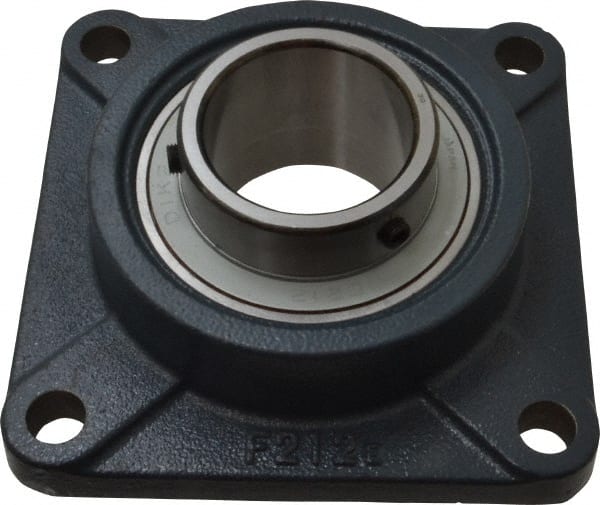

Value Collection - 2-7/16" ID, 6-7/8" OAW x 6-7/8" OAL x 6-7/8" OAH 4-Bolt High Temperature Flange Bearing - 7,970 Lb Static Cap, 11,550 Lb Dyn Cap, 5-5/8" Btw Mnt Hole Ctrs, 1-9/64" Base-to-Ctr Ht, Cast Iron
Item #: 05600457
Brand: Value Collection
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | 4 Bolt Flange Bearings High Temperature |
| Inside Diameter (Inch) | 2-7/16 |
| Width (Decimal Inch) | 2.5630 |
| Width (mm) | 65.10 |
| Overall Length (Inch) | 6-7/8 |
| Overall Length (mm) | 174.6250 |
| Overall Length (Decimal Inch) | 6.8750 |
| Overall Height (Inch) | 6-7/8 |
| Overall Height (Decimal Inch) | 6.8750 |
| Overall Height (mm) | 174.62500 |
| Static Load Capacity (Pounds) | 7970.00 |
| Dynamic Load Capacity (Pounds) | 11550 |
| Distance Between Mounting Hole Centers (Decimal Inch) | 5.6250 |
| Material | Cast Iron |
| Distance Between Base And Center (Decimal Inch) | 1.1406 |
| Distance Between Base And Center (Inch) | 1-9/64 |
| Bolt Size (Inch) | 5/8 |
| Bolt Size (Decimal Inch) | 0.6250 |
