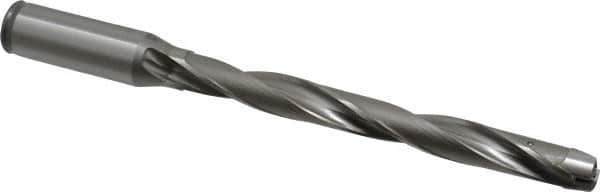

Kennametal - 14.29 to 14.5mm Diam, 10xD, 142.88mm Max Depth, 3/4" Shank Diam, 158.93mm Flute, 212.73mm OAL, Replaceable Tip Drill - KSEM0563 Insert, B Seat Size, Series KSEM
Item #: 05679527
Brand: Kennametal
Model #: 1798244
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KSEM |
| Minimum Drill Diameter (mm) | 14.29 |
| Minimum Drill Diameter (Decimal Inch) | 0.5626 |
| Maximum Drill Diameter (mm) | 14.50 |
| Maximum Drill Diameter (Decimal Inch) | 0.5709 |
| Drill Depth by Diameter Ratio | 10xD |
| Maximum Drill Depth (Decimal Inch) | 5.6300 |
| Maximum Drill Depth (mm) | 142.88 |
| Shank Diameter (mm) | 19.05 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Style | KSEM0563 |
| Insert Seat Size | B |
| Through Coolant | NonThrough Coolant |
| Coolant Hole Diameter (mm) | 2.50 |
| Coolant Hole Diameter (Decimal Inch) | 0.0984 |
| Shank Type | Straight Shank |
| Tip Length (Decimal Inch) | 0.0900 |
| Flute Length (mm) | 158.93 |
| Flute Length (Decimal Inch) | 6.2571 |
| Overall Length (mm) | 212.73 |
| Overall Length (Decimal Inch) | 8.3752 |
| Shank Length (Decimal Inch) | 2.0000 |
