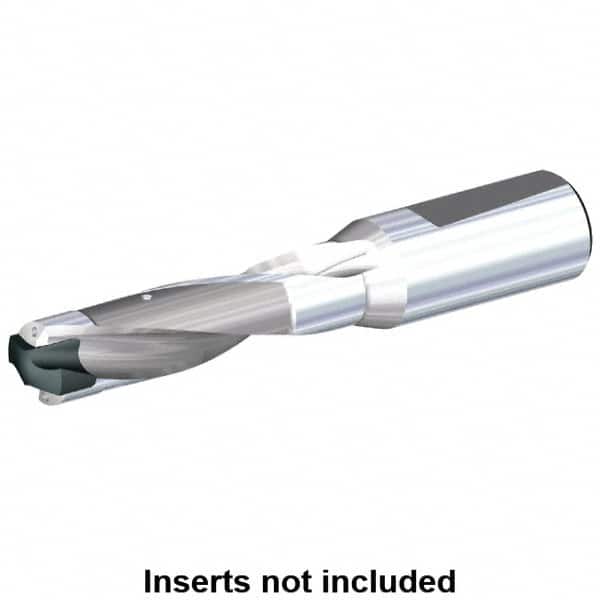

Kennametal - 30 to 30mm Diam, 5xD, 150mm Max Depth, 32mm Shank Diam, 185mm Flute, 250mm OAL, Replaceable Tip Drill - KSEM3000 Insert, 7 Seat Size, Series KSEM
Item #: 05679840
Brand: Kennametal
Model #: 1246095
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KSEM |
| Minimum Drill Diameter (mm) | 30.00 |
| Minimum Drill Diameter (Decimal Inch) | 1.1811 |
| Maximum Drill Diameter (mm) | 30.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.1811 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 150.00 |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Insert Style | KSEM3000 |
| Insert Seat Size | 7 |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 5.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.1969 |
| Shank Type | Whistle Notch |
| Tip Length (mm) | 4.60 |
| Flute Length (mm) | 185.00 |
| Flute Length (Decimal Inch) | 7.2835 |
| Overall Length (mm) | 250.00 |
| Shank Length (mm) | 60.00 |
