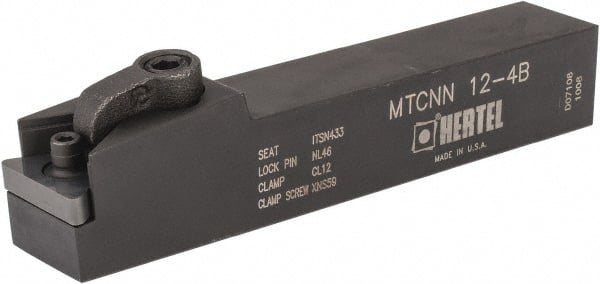

Hertel - MTCN, Neutral Cut, 0° Lead Angle, 3/4" Shank Height x 3/4" Shank Width, Negative Rake Indexable Turning Toolholder - 6" OAL, TN..43. Insert Compatibility, Series Multi-Option
Item #: 05697024
Brand: Hertel
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | MTCN |
| Rake | Negative |
| Rake Angle | -7 |
| Series | Multi-Option |
| Lead Angle | 0 |
| Shank Width (Inch) | 3/4 |
| Shank Width (Decimal Inch) | 0.7500 |
| Shank Height (Inch) | 3/4 |
| Shank Height (Decimal Inch) | 0.7500 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Compatibility | TN..43. |
| Multi-Use Tool | No |
| Insert Holding Method | Screw or Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7750 |
| Head Length (Decimal Inch) | 1.4300 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Toolholder Material | Steel |
