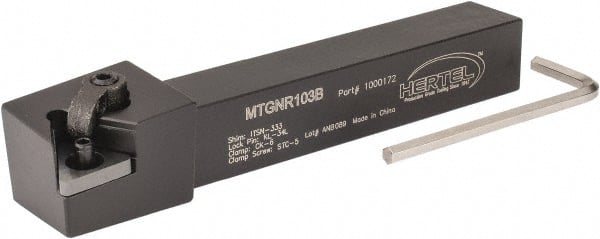

Hertel - MTGN, Right Hand Cut, 3° Lead Angle, 5/8" Shank Height x 5/8" Shank Width, Negative Rake Indexable Turning Toolholder - 4-1/2" OAL, TN..33. Insert Compatibility, Series Multi-Option
Item #: 05697636
Brand: Hertel
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | MTGN |
| Rake | Negative |
| Rake Angle | -5 |
| Series | Multi-Option |
| Lead Angle | 3 |
| Shank Width (Inch) | 5/8 |
| Shank Width (Decimal Inch) | 0.6250 |
| Shank Height (Inch) | 5/8 |
| Shank Height (Decimal Inch) | 0.6250 |
| Overall Length (Inch) | 4-1/2 |
| Overall Length (Decimal Inch) | 4.5000 |
| Insert Compatibility | TN..33. |
| Multi-Use Tool | No |
| Insert Holding Method | Screw or Clamp |
| Back of Bar to Cutting Edge (Inch) | 7/8 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.8750 |
| Head Length (Decimal Inch) | 1.1200 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Toolholder Material | Steel |
