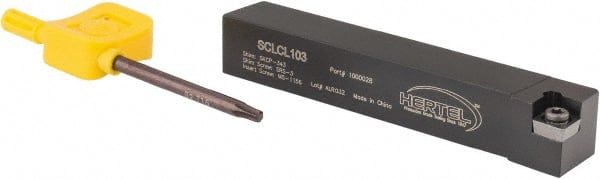

Hertel - SCLC, Left Hand Cut, 5° Lead Angle, 5/8" Shank Height x 5/8" Shank Width, Neutral Rake Indexable Turning Toolholder - 4" OAL, CC..32.5. Insert Compatibility, Series Screw-Type
Item #: 05697859
Brand: Hertel
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | SCLC |
| Rake | Neutral |
| Series | Screw-Type |
| Lead Angle | 5 |
| Shank Width (Inch) | 5/8 |
| Shank Width (Decimal Inch) | 0.6250 |
| Shank Height (Inch) | 5/8 |
| Shank Height (Decimal Inch) | 0.6250 |
| Overall Length (Inch) | 4 |
| Overall Length (Decimal Inch) | 4.0000 |
| Insert Compatibility | CC..32.5. |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (Inch) | 3/4 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7500 |
| Head Length (Decimal Inch) | 0.6200 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Toolholder Material | Steel |
