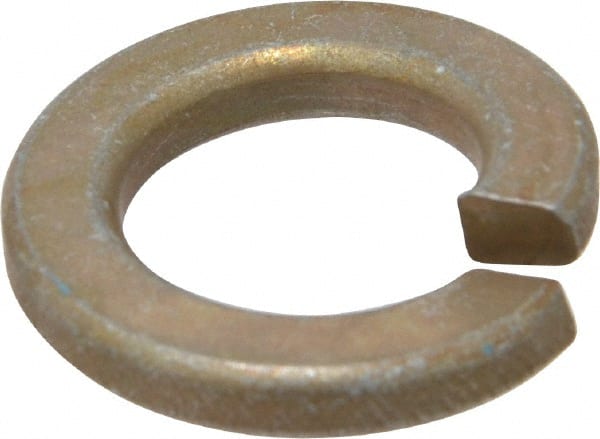

Value Collection - 9/16", 0.564" ID, 0.141" Thick Split Lock Washer - Grade 8 Steel, Zinc Yellow Dichromate Finish, 0.564" Min ID, 0.574" Max ID, 0.965" Max OD
Item #: 05724851
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Split lock washers have a split at one point along their outer diameter, which creates compression and tension to lock the nut in place. Split lock washers are used in high-vibration applications.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Type | Split Lock Washer |
| Screw Size | 9/16 |
| Material | Steel |
| Material Grade | Grade 8 |
| Finish/Coating | Zinc Yellow Dichromate |
| Inside Diameter (Decimal Inch) | 0.5640 |
| Thickness (Decimal Inch) | 0.1410 |
| Minimum Inside Diameter (Decimal Inch) | 0.5640 |
| Maximum Inside Diameter (Decimal Inch) | 0.5740 |
| Maximum Outside Diameter (Decimal Inch) | 0.9650 |
| Military Specification | Does Not Meet Military Specifications |
