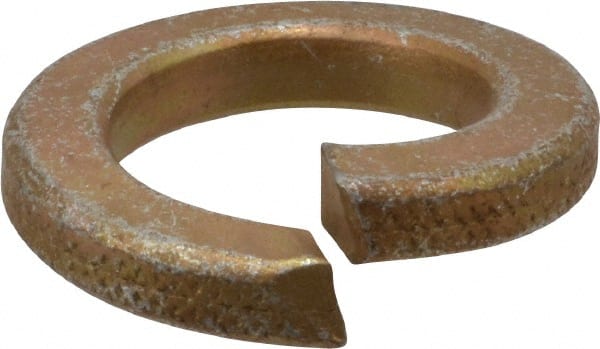

Value Collection - 1", 1.003" ID, 1/4" Thick Split Lock Washer - Grade 8 Steel, Zinc Yellow Dichromate Finish, 1.003" Min ID, 1.024" Max ID, 1.656" Max OD
Item #: 05724893
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Split lock washers have a split at one point along their outer diameter, which creates compression and tension to lock the nut in place. Split lock washers are used in high-vibration applications.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Type | Split Lock Washer |
| Screw Size | 1 |
| Material | Steel |
| Material Grade | Grade 8 |
| Finish/Coating | Zinc Yellow Dichromate |
| Inside Diameter (Decimal Inch) | 1.0030 |
| Thickness (Decimal Inch) | 0.2500 |
| Minimum Inside Diameter (Decimal Inch) | 1.0030 |
| Maximum Inside Diameter (Decimal Inch) | 1.0240 |
| Maximum Outside Diameter (Decimal Inch) | 1.6560 |
| Military Specification | Does Not Meet Military Specifications |
