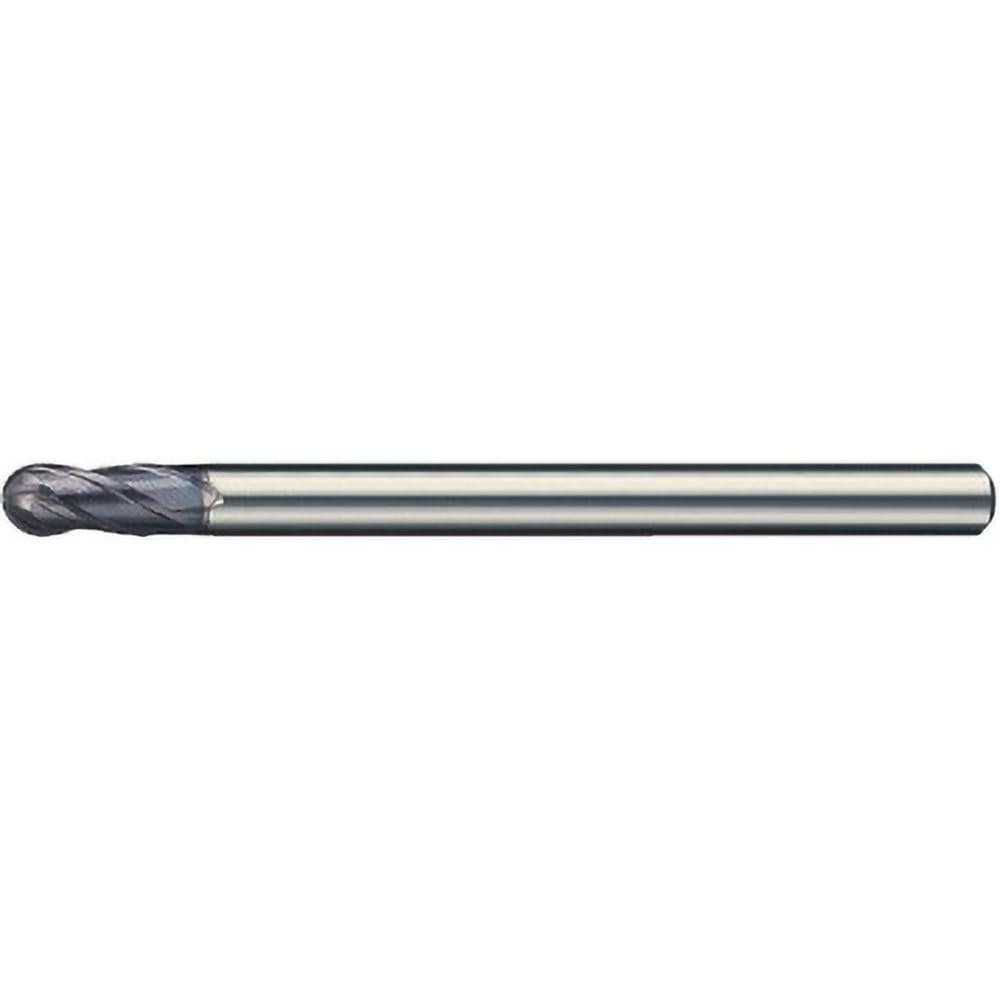

Ball End Mill: 10.00 mm Dia, 18.00 mm LOC, 4 Flute, Solid Carbide
Item #: 55172902
Brand: Mitsubishi
Model #: 510529
Product Specifications
| Mill Diameter (Decimal Inch) | 0.3937 |
| Mill Diameter (mm) | 10.00 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (mm) | 18.00 |
| Coating/Finish | AlTiSiN |
| Extended Reach | No |
| Variable Helix | No |
| Variable Index | No |
| Helix Angle | 30 |
| Overall Length (Decimal Inch) | 3.9370 |
| Overall Length (mm) | 100.00 |
| Chipbreaker | No |
| Undercutting | No |
| Length Type | Medium |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Shank Diameter (mm) | 10.00 |
| Nose Radius (mm) | 5.00 |
| Nose Radius (Decimal Inch) | 0.1969 |
| Neck Length (Decimal Inch) | 0.7087 |
| Neck Length (mm) | 18.00 |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | H |
| Secondary Workpiece Material | Steel |
| Secondary Workpiece Material Code | P |
| Material Grade | Carbide |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | VF |
| Flute Type | Spiral |
| UNSPSC Code | 27112803 |
| Centercutting | Yes |
| Coating Classification | PVD |
| Single Or Double End | Single |
| Shank Type | Straight-Cylindrical |
| Pitch | Normal |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.7087 |
| System Of Measurement | Metric |
| Mill Diameter (Decimal Inch) | 0.3937 |
| Mill Diameter (mm) | 10.00 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (mm) | 18.00 |
| Coating/Finish | AlTiSiN |
| Extended Reach | No |
| Variable Helix | No |
| Variable Index | No |
| Helix Angle | 30 |
| Overall Length (Decimal Inch) | 3.9370 |
| Overall Length (mm) | 100.00 |
| Chipbreaker | No |
| Undercutting | No |
| Length Type | Medium |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Shank Diameter (mm) | 10.00 |
| Nose Radius (mm) | 5.00 |
| Nose Radius (Decimal Inch) | 0.1969 |
| Neck Length (Decimal Inch) | 0.7087 |
| Neck Length (mm) | 18.00 |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | H |
| Secondary Workpiece Material | Steel |
| Secondary Workpiece Material Code | P |
| Material Grade | Carbide |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | VF |
| Flute Type | Spiral |
| UNSPSC Code | 27112803 |
| Centercutting | Yes |
| Coating Classification | PVD |
| Single Or Double End | Single |
| Shank Type | Straight-Cylindrical |
| Pitch | Normal |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.7087 |
| System Of Measurement | Metric |
| MSC Part # | 55172902 |
| Mfr Part # | 510529 |
| Country of Origin Country of Origin is subject to change | Japan |
