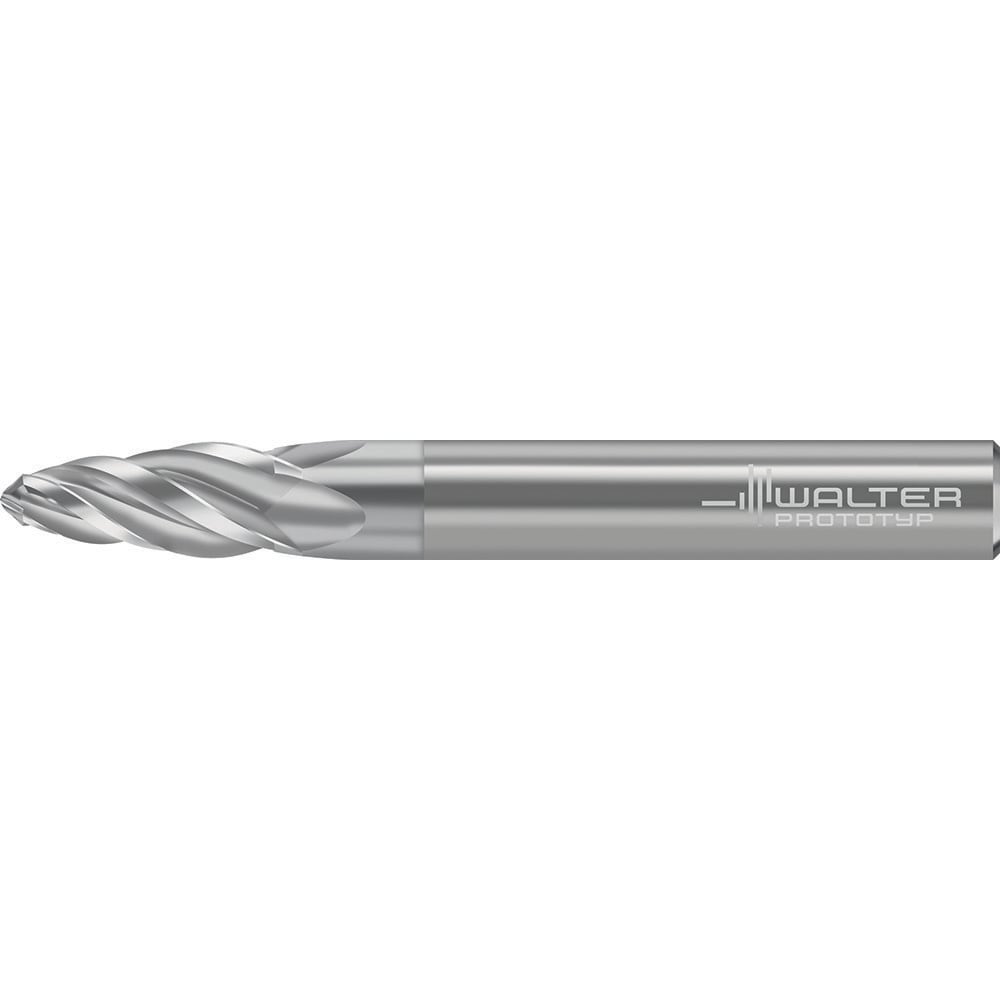

Barrel Cutter End Mills; End Type: Circle Segment Oval Form; Material: Solid Carbide; Taper Angle Per Side: 9.24; Small End Diameter (mm): 6.00; Shank Diameter (mm): 16.0000; Length of Cut (mm): 33.7400; Helix Angle: 30.00
Item #: 51372308
Brand: Walter-Prototyp
Model #: 7877293
Product Specifications
| End Type | Circle Segment Oval Form |
| Material | Solid Carbide |
| Taper Angle Per Side | 9.24 |
| Small End Diameter (mm) | 6.00 |
| Shank Diameter (mm) | 16.0000 |
| Length of Cut (mm) | 33.7400 |
| Helix Angle | 30.00 |
| Overall Length (mm) | 115.0000 |
| Flute Type | Spiral |
| Flute Direction | Right Hand |
| Series/List | MD839 |
| Finish Coating | ZrN; TiAlN |
| Major Radius (Decimal Inch) | 0.1550 |
| Length of Cut (Decimal Inch) | 1.3283 |
| Shank Diameter | 0.6299 |
| Number Of Flutes | 4 |
| Overall Length (Decimal Inch) | 4.5276 |
| Small End Diameter (Decimal Inch) | 0.2362 |
| UNSPSC Code | 27112803 |
