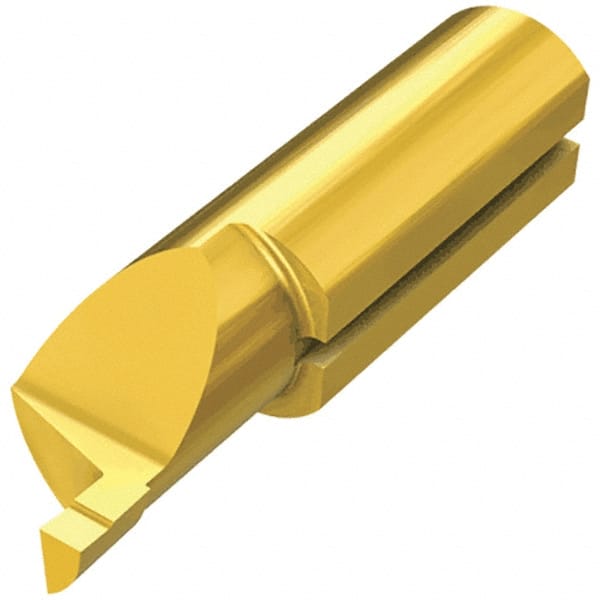

Iscar - 1.5mm Groove Width, 7.87mm Min Hole Diam, 21.01mm Max Hole Depth, Face Grooving Tool - 2.49mm Projection, 0.551" Shank Length, 35mm OAL, Solid Carbide, TiN Finish
Item #: 05799721
Brand: Iscar
Model #: 6402847
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics, and other tough-to-machine materials.
Titanium nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Grooving Tool Type | Face |
| Material | Solid Carbide |
| Shank Diameter (Decimal Inch) | 0.2760 |
| Shank Diameter (mm) | 7.01 |
| Groove Width (Decimal Inch) | 0.0590 |
| Groove Width (mm) | 1.50 |
| Projection (Decimal Inch) | 0.0980 |
| Projection (mm) | 2.49 |
| Minimum Hole Diameter (Decimal Inch) | 0.3100 |
| Minimum Hole Diameter (mm) | 7.87 |
| Maximum Hole Depth (Decimal Inch) | 0.8270 |
| Maximum Hole Depth (mm) | 21.01 |
| Overall Length (Decimal Inch) | 1.3780 |
| Overall Length (mm) | 35.00 |
| Finish/Coating | TiN |
| Shank Length (Decimal Inch) | 0.5510 |
| Manufacturer Grade | IC228 |
