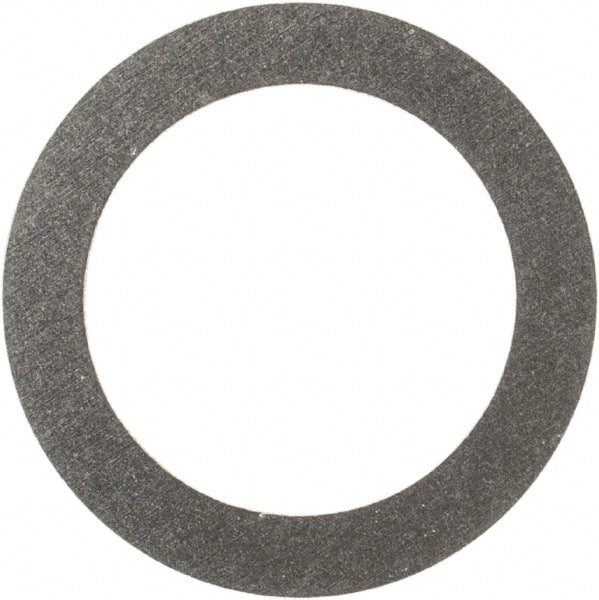

Made in USA - 0.005" Thick, 0.314" Inside x 7/16" OD, Shortening Shim - 1/4" Screw, Uncoated 300 Stainless Steel
Item #: 05800768
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Shortening shoulder screw shims are placed around the shank and under the head to shorten the screw.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Shortening Shim |
| System of Measurement | Inch |
| Thickness (Decimal Inch) | 0.0050 |
| Screw Size (Inch) | 1/4 |
| Material | Stainless Steel |
| Material Grade | 300 |
| Thickness Tolerance (Decimal Inch) | -0.0005 to 0.0005 |
| Finish/Coating | Uncoated |
| Inside Diameter (Decimal Inch) | 0.3140 |
| Outside Diameter (Decimal Inch) | 0.4380 |
| Shoulder Diameter (Inch) | 5/16 |
| Inside Diameter Tolerance (Decimal Inch) | 0.000 to 0.011 |
| Outside Diameter Tolerance (Decimal Inch) | -0.002 to 0.002 |
