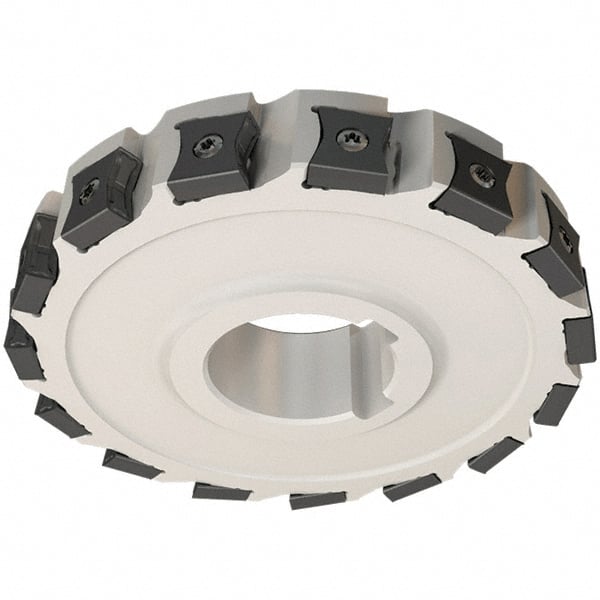

Iscar - Arbor Hole Connection, 0.5512" Cutting Width, 2.0472" Depth of Cut, 160mm Cutter Diam, 1.5748" Hole Diam, 20 Tooth Indexable Slotting Cutter - SSB-LN15 Toolholder, LN.. Insert, Right Hand Cutting Direction
Item #: 05803663
Brand: Iscar
Model #: 3102848
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 14.00 |
| Cutting Width (Decimal Inch) | 0.5512 |
| Maximum Depth of Cut (mm) | 52.00 |
| Maximum Depth of Cut (Decimal Inch) | 2.0472 |
| Cutter Diameter (mm) | 160.00 |
| Cutter Diameter (Decimal Inch) | 6.2992 |
| Hole Diameter (mm) | 40.00 |
| Hole Diameter (Decimal Inch) | 1.5748 |
| Number of Teeth | 20 |
| Toolholder Style | SSB-LN15 |
| Series | TangMill(SSB-LN15-R/L) |
| Insert Style | LN.. |
| Staggered Tooth | No |
| Number of Cutter Inserts | 20 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Clamp |
| Hub Diameter (mm) | 56.00 |
| Hub Diameter (Decimal Inch) | 2.2047 |
