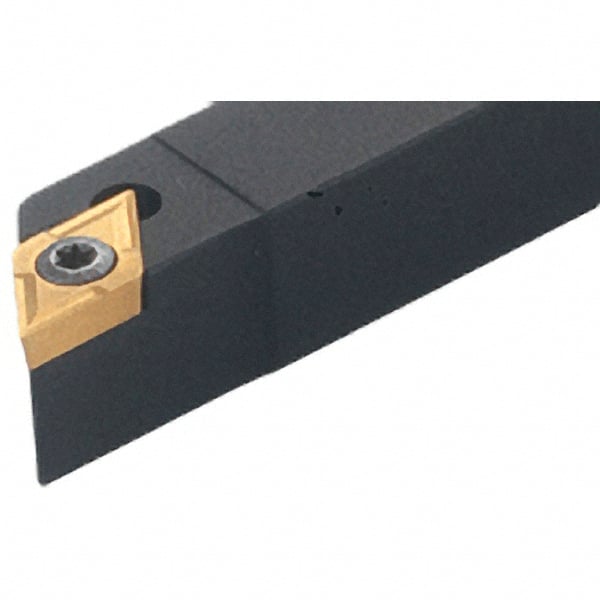

Iscar - SDAC, Right Hand Cut, 12mm Shank Height x 12mm Shank Width, Neutral Rake Indexable Turning Toolholder - 125mm OAL, DC.T 2 Insert Compatibility, Series Isoturn
Item #: 05809918
Brand: Iscar
Model #: 3601814
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | SDAC |
| Rake | Neutral |
| Rake Angle | 0 |
| Series | Isoturn |
| Shank Width (mm) | 12.00 |
| Shank Width (Decimal Inch) | 0.4724 |
| Shank Height (mm) | 12.00 |
| Shank Height (Decimal Inch) | 0.4724 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Insert Compatibility | DC.T 2 |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 12.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.4724 |
