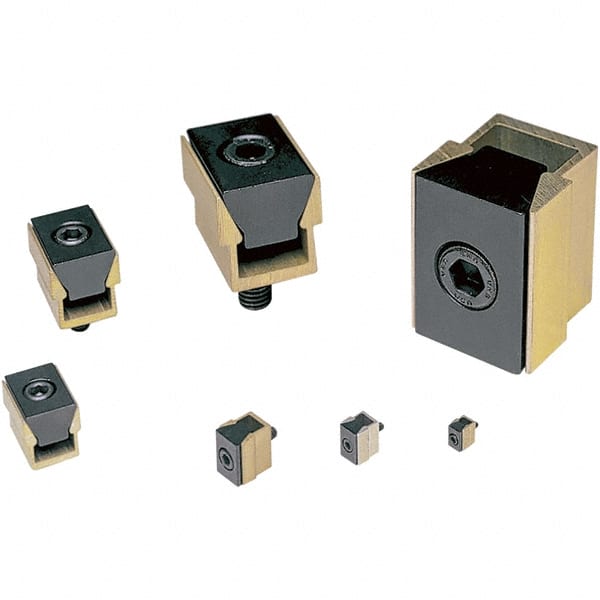

Mitee-Bite - 310 Lb Holding Force Single T-Slot Wedge Clamp - 0.31" Wide x 0.47" Deep x 3/8" High Base, 0.36 to 0.39" Jaw Spread, 1.1 Lb/Ft Torque, 4-40 Screw Thread
Item #: 05841010
Brand: Mitee-Bite
Model #: 60375
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Wedge Clamp Style | T-Slot |
| Single or Double Wedge | Single |
| Screw Thread Size | 4-40 |
| Machinable | No |
| Holding Force (Lb.) | 310.00 |
| Torque (Ft/Lb) | 1.10 |
| Base Height (Decimal Inch) | 0.3750 |
| Base Width (Decimal Inch) | 0.3100 |
| Base Depth (Decimal Inch) | 0.4700 |
| Clearance Width (Decimal Inch) | 0.3750 |
| Minimum Jaw Spread (Decimal Inch) | 0.3600 |
| Maximum Jaw Spread (Decimal Inch) | 0.3900 |
| Projection From Base (Decimal Inch) | 0.1850 |
| Hex Key Size (Inch) | 3/32 |
| Overall Width (Decimal Inch) | 0.3600 |
| Number of Clamps | 6 |
