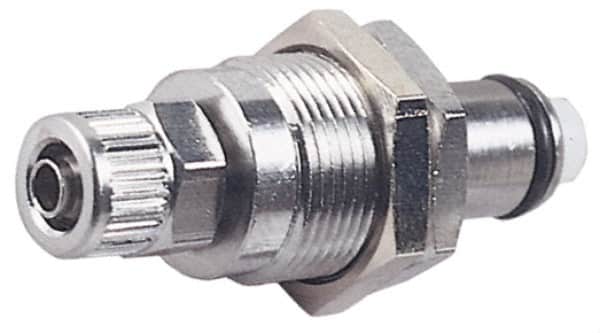

CPC Colder Products - PTF Brass, Quick Disconnect, Panel Mount Coupling Insert - 250 Max psi, -40 to 180°F, 1.22" OAL x 0.63" Overall Height, Chrome Plated
Item #: 05849435
Brand: CPC Colder Products
Model #: LC40006NA
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | PTF Non-Valved Panel Mount Coupling Insert |
| Tube Outside Diameter (Inch) | 3/8 |
| Material | Brass |
| Maximum Working Pressure (psi) | 250.00 |
| Finish/Coating | Chrome Plated |
| O-Ring Material | Buna Nitrile |
| Minimum Work Temperature (F) | -40 |
| Maximum Work Temperature (F) | 180 |
| Length (Decimal Inch) | 1.220 |
| Overall Height (Decimal Inch) | 0.6300 |
