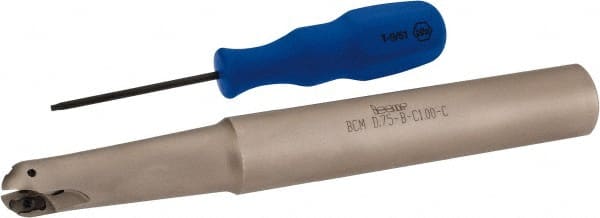

Iscar - 3/4" Cut Diam, 0.61" Max Depth of Cut, 1" Shank Diam, 8" OAL, Indexable Ball Nose End Mill - 3" Head Length, Straight Shank, BCM Toolholder, BCR D.75 Insert
Item #: 05869011
Brand: Iscar
Model #: 3103439
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 3/4 |
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Maximum Depth of Cut (Decimal Inch) | 0.6100 |
| Shank Type | Straight Shank |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | BCR D.75 |
| Toolholder Style | BCM |
| Series | DropMill |
| Overall Length (Decimal Inch) | 8.0000 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Weldon Flat | No |
| Tapered Neck | Yes |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 3.0000 |
