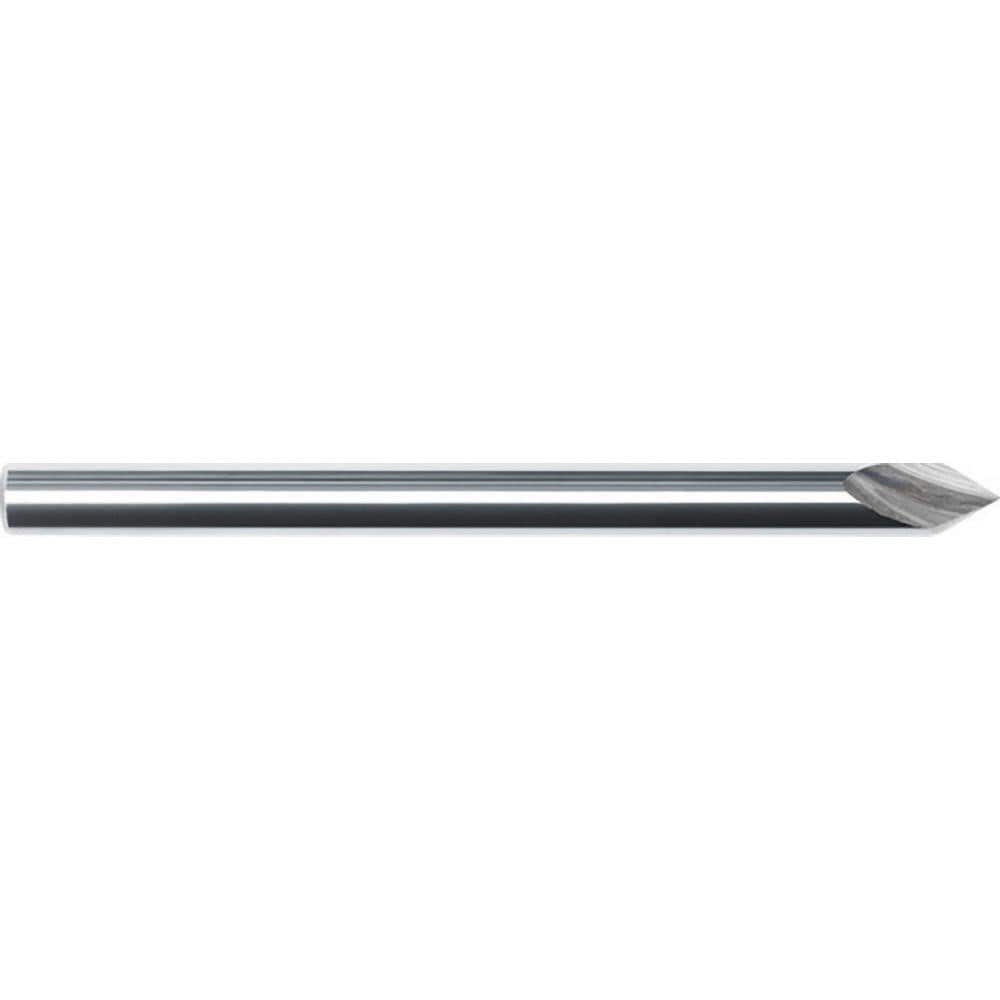

Engraving Cutters; Cutter Diameter (Inch): 1/4; Cutter Diameter (Decimal Inch): 0.2500; Point Shape: Pointed; Shank Diameter (Decimal Inch): 0.2500; Shank Diameter (Inch): 1/4; Length of Cut (Inch): 1/8
Item #: 31934037
Brand: Internal Tool
Model #: 62-2660-C
Product Specifications
| Cutter Diameter (Inch) | 1/4 |
| Cutter Diameter (Decimal Inch) | 0.2500 |
| Point Shape | Pointed |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Shank Diameter (Inch) | 1/4 |
| Length of Cut (Inch) | 1/8 |
| Included Angle | 90.00 |
| Material Application | Monel; Waspaloy; Aluminum; Inconel; Hastelloy; Plastic; Steel; Stainless Steel; Cast Iron; Titanium; Nickel; Magnesium; Copper |
| Overall Length (Inch) | 2-1/2 |
| Overall Length (Decimal Inch) | 2.5000 |
| Primary Workpiece Material Code | P; S; K; M |
| Cutting Direction | Right Hand |
| Cutter Material Grade | Micrograin |
| Series | 62 |
| Tip Diameter (Decimal Inch) | 0.0000 |
| Coating/Finish | AlTiN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1250 |
| Number Of Flutes | 2 |
| Cutter Material | Solid Carbide |
| UNSPSC Code | 23241614 |
