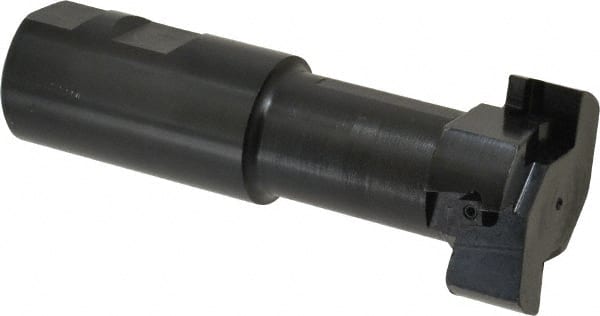

Cutting Tool Technologies - 1-27/32" Cutting Diam x 53/64" Cutting Width, 4 Cutter Inserts, 1-1/4" Shank Diam, Indexable T-Slot Cutter - Insert Style 1500-030, 2 Flutes
Item #: 05945084
Brand: Cutting Tool Technologies
Model #: TSC-060
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1-27/32 |
| Cutting Diameter (Decimal Inch) | 1.8438 |
| T-Slot Bolt Size (Inch) | 1 |
| Cutting Width (Decimal Inch) | 0.8281 |
| Cutting Width (Inch) | 53/64 |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Toolholder Style | TSC |
| Number of Cutter Inserts | 4 |
| Insert Style | 1500-030 |
| Staggered Tooth | Yes |
| Number of Flutes | 2 |
| Neck Diameter (Decimal Inch) | 1.0300 |
| Neck Length (Decimal Inch) | 1.6700 |
| Shank Length (Inch) | 2-5/16 |
| Shank Length (Decimal Inch) | 2.3125 |
| Insert Holding Method | Wedge |
| Weldon Flat | Yes |
| Toolholder Material | Steel |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Radius (Decimal Inch) | 0.0300 |
| Complete Insert Compatibility | 1500-030 |
