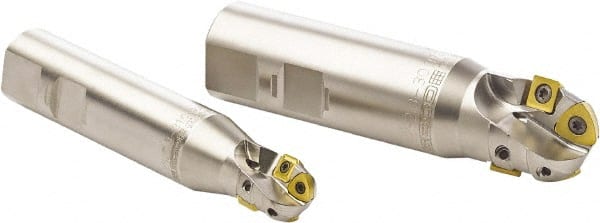

Seco - 32mm Cut Diam, 30mm Max Depth of Cut, 32mm Shank Diam, 5.118" OAL, Indexable Ball Nose End Mill - Straight Shank, R218.19 Toolholder, 218.19 160, SPMT 1004 Insert
Item #: 05953633
Brand: Seco
Model #: 69120
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Cutting Diameter (Decimal Inch) | 1.2600 |
| Maximum Depth of Cut (mm) | 30.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.1810 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2600 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | 218.19 160; SPMT 1004 |
| Toolholder Style | R218.19 |
| Overall Length (Decimal Inch) | 5.1180 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Weldon Flat | Yes |
| Tapered Neck | No |
| Number of Flutes | 1 |
| Number of Side Inserts Used on Toolholder | 2 |
| Maximum RPM | 14800 |
