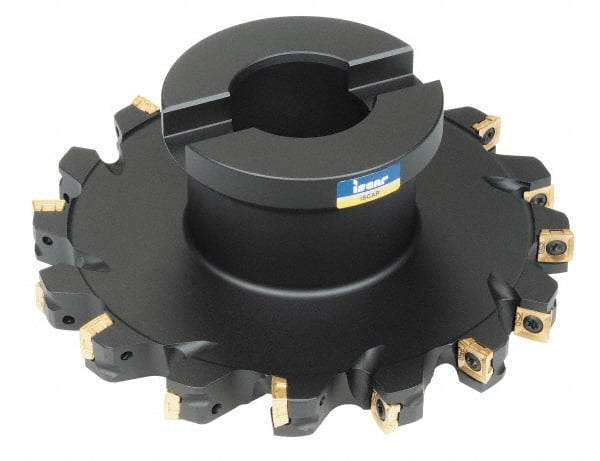

Iscar - Shell Mount B Connection, 3/4" Cutting Width, 2-1/4" Depth of Cut, 8" Cutter Diam, 2" Hole Diam, 8 Tooth Indexable Slotting Cutter - FDN Toolholder, X/QPMT 1205PDTN-HQ Insert
Item #: 05955174
Brand: Iscar
Model #: 3100878
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount B |
| Cutting Width (Decimal Inch) | 0.7500 |
| Cutting Width (Inch) | 3/4 |
| Maximum Depth of Cut (Decimal Inch) | 2.2500 |
| Cutter Diameter (Decimal Inch) | 8.0000 |
| Cutter Diameter (Inch) | 8 |
| Hole Diameter (Inch) | 2 |
| Hole Diameter (Decimal Inch) | 2.0000 |
| Number of Teeth | 8 |
| Toolholder Style | FDN |
| Series | Heliquad(FDN) |
| Insert Style | X/QPMT 1205PDTN-HQ |
| Number of Cutter Inserts | 16 |
| Insert Holding Method | Screw |
| Minimum Cutting Width (Decimal Inch) | 0.7500 |
| Maximum Cutting Width (Decimal Inch) | 0.7500 |
| Hub Diameter (Decimal Inch) | 4.0000 |
| Radius | No |
| Cutter Body Width (Decimal Inch) | 2.5000 |
