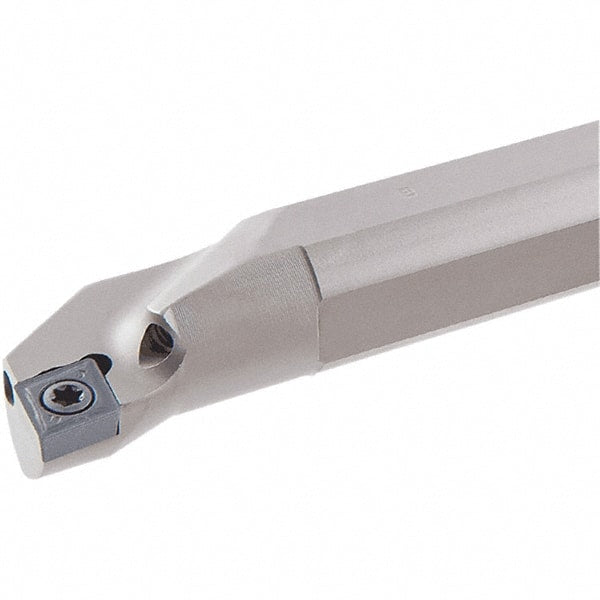

Iscar - 16mm Min Bore Diam, 170mm OAL, 12mm Shank Diam, E-SCLC Indexable Boring Bar - CC.T 0602.. Insert, Screw Holding Method
Item #: 05993290
Brand: Iscar
Model #: 3601908
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | E-SCLC |
| Series | Isoturn |
| Minimum Bore Diameter (mm) | 16.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.6299 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 170.00 |
| Overall Length (Decimal Inch) | 6.6929 |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Insert Compatibility | CC.T 0602.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Negative |
| Center to Cutting Edge (mm) | 9.00 |
| Center to Cutting Edge (Decimal Inch) | 0.3543 |
| Rake Angle | -7 |
| Complete Insert Compatibility | CCGT 060201-AS; CCGT 060201-SM; CCGT 060202; CCGT 060202-AS; CCGT 060202-SM; CCGT 060202L; CCGT 060204; CCGT 060204-AS; CCGT 060204L; CCMT 060202; CCMT 060202-14; CCMT 060202-SM; CCMT 060202T; CCMT 060204-14; CCMT 060204-SM; CCMT 060204T; CCMT 060208-SM |
| Toolholder Material | Carbide |
