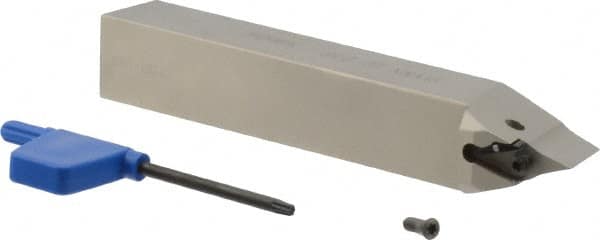

Iscar - SVVN, Neutral Cut, 0° Lead Angle, 3/4" Shank Height x 3/4" Shank Width, Negative Rake Indexable Turning Toolholder - 5" OAL, VN..25.. Insert Compatibility, Series Isoturn
Item #: 05993423
Brand: Iscar
Model #: 3601927
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | SVVN |
| Rake | Negative |
| Series | Isoturn |
| Lead Angle | 0 |
| Shank Width (Inch) | 3/4 |
| Shank Width (Decimal Inch) | 0.7500 |
| Shank Height (Inch) | 3/4 |
| Shank Height (Decimal Inch) | 0.7500 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 5.0000 |
| Insert Compatibility | VN..25.. |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.8800 |
| Head Length (Decimal Inch) | 1.0300 |
| Toolholder Material | Steel |
